OX006 Finger Pulse Oximeter is designed for fingers(not thumb) between 0.3 and 1.0 inch (0.8-2.54cm) thick, and the finger shall be inserted into the sensor position which is in the middle of the device.
The pulse oximeter is not designed for newborns(0-2mos.) and infants(2mos.-1yr.).
We recommend using index finger, middle finger and ring finger. It is recommended for people who weigh more than 30kg. And this device is more recommended for the vascular disease crowd, the respiratory system disease crowd, middle-aged people, men over the age of 60 and athletes.
The product is not suitable for monitoring patients continuously but intended for spot-checking. It is also not suitable for use during motion and low perfusion.

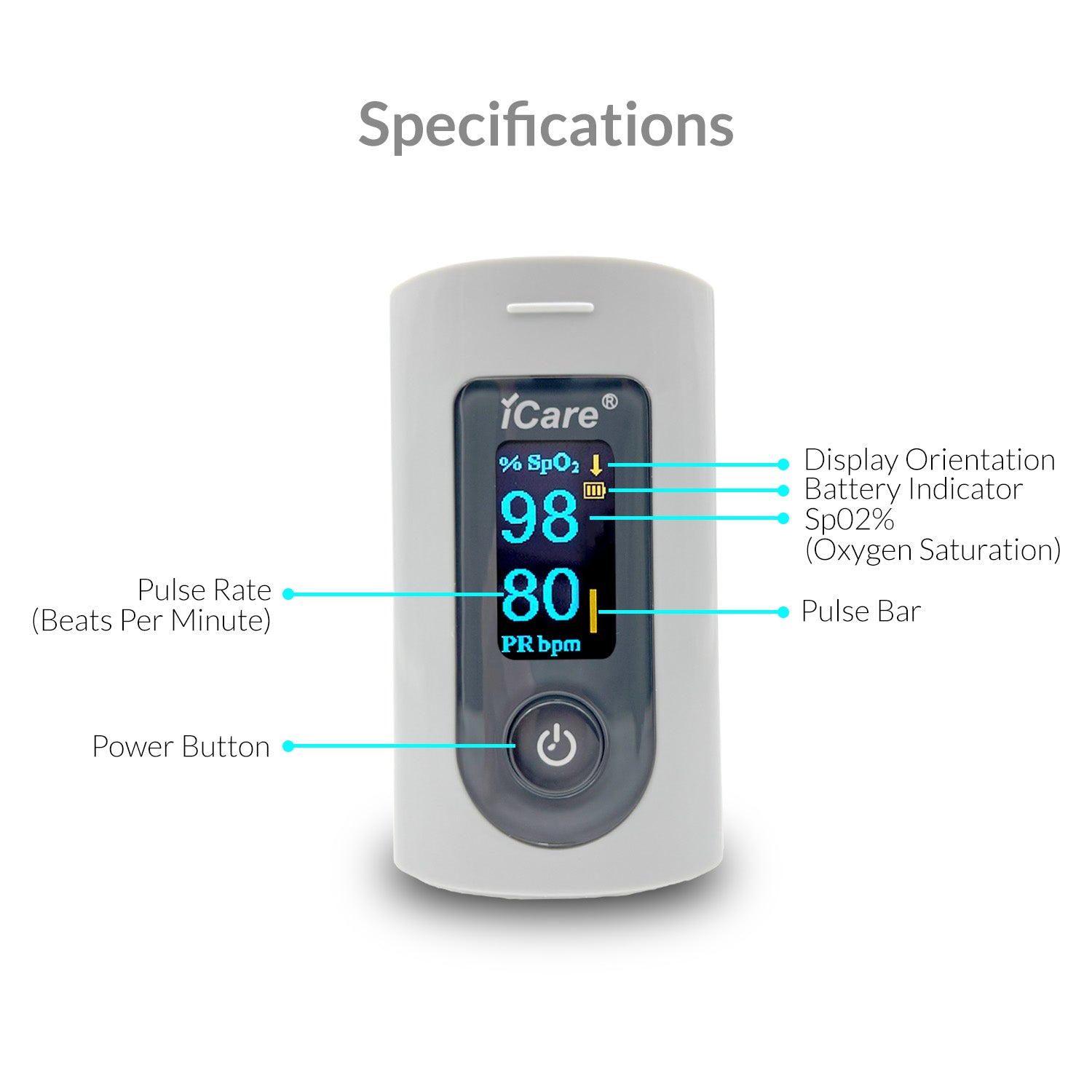

Main Features:
-
Low-power consumption
-
Oxygen saturation and PR display
-
Pulse bar
-
Pulse wave
-

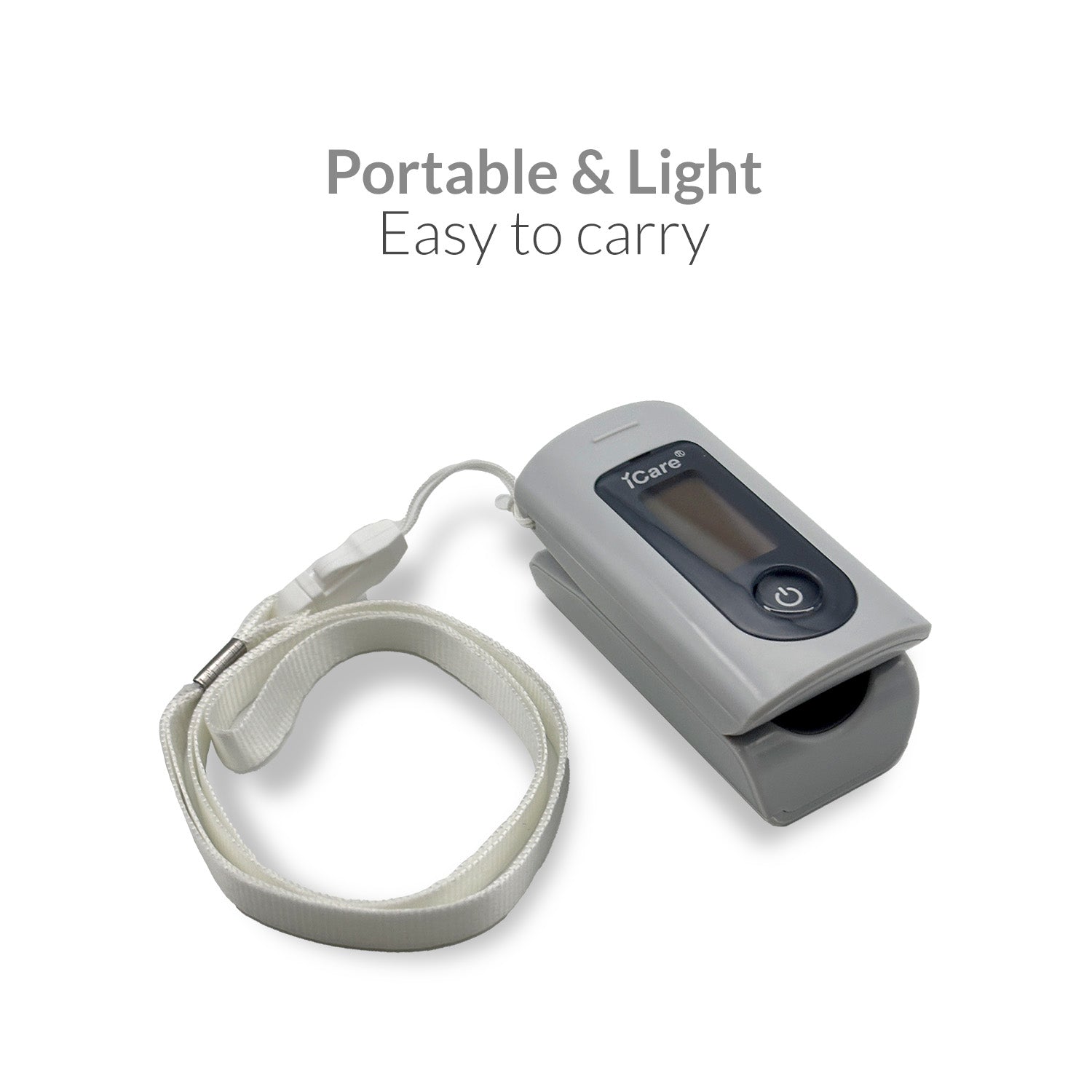

Easy to use, light in weight
-
and portable
-
Automatic shutdown at about 8 seconds
-
One-button measurement
-
OLED display

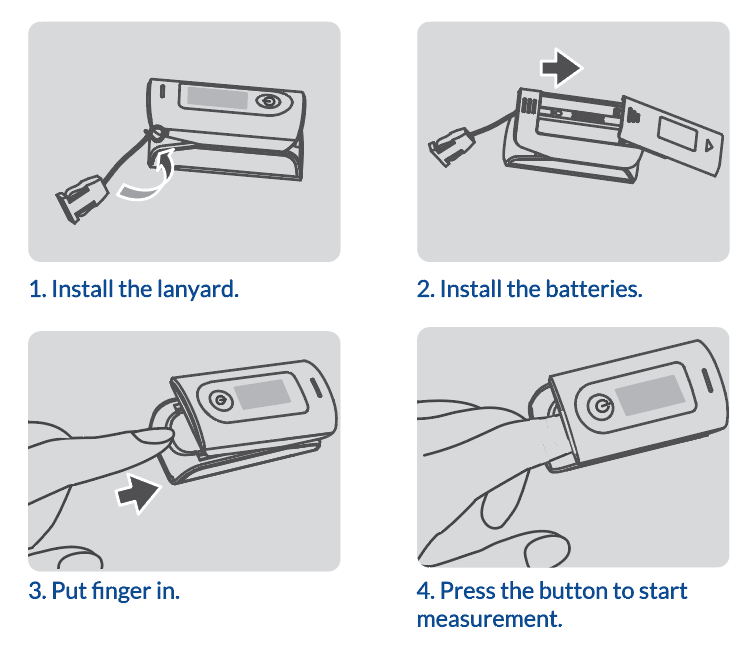

How To Use:
1. Install two AAA batteries into battery cassette before closing the cover.
2. Nip the clamp.
Note: During the measurement，the device is placed with the face up when the finger is inserted in.

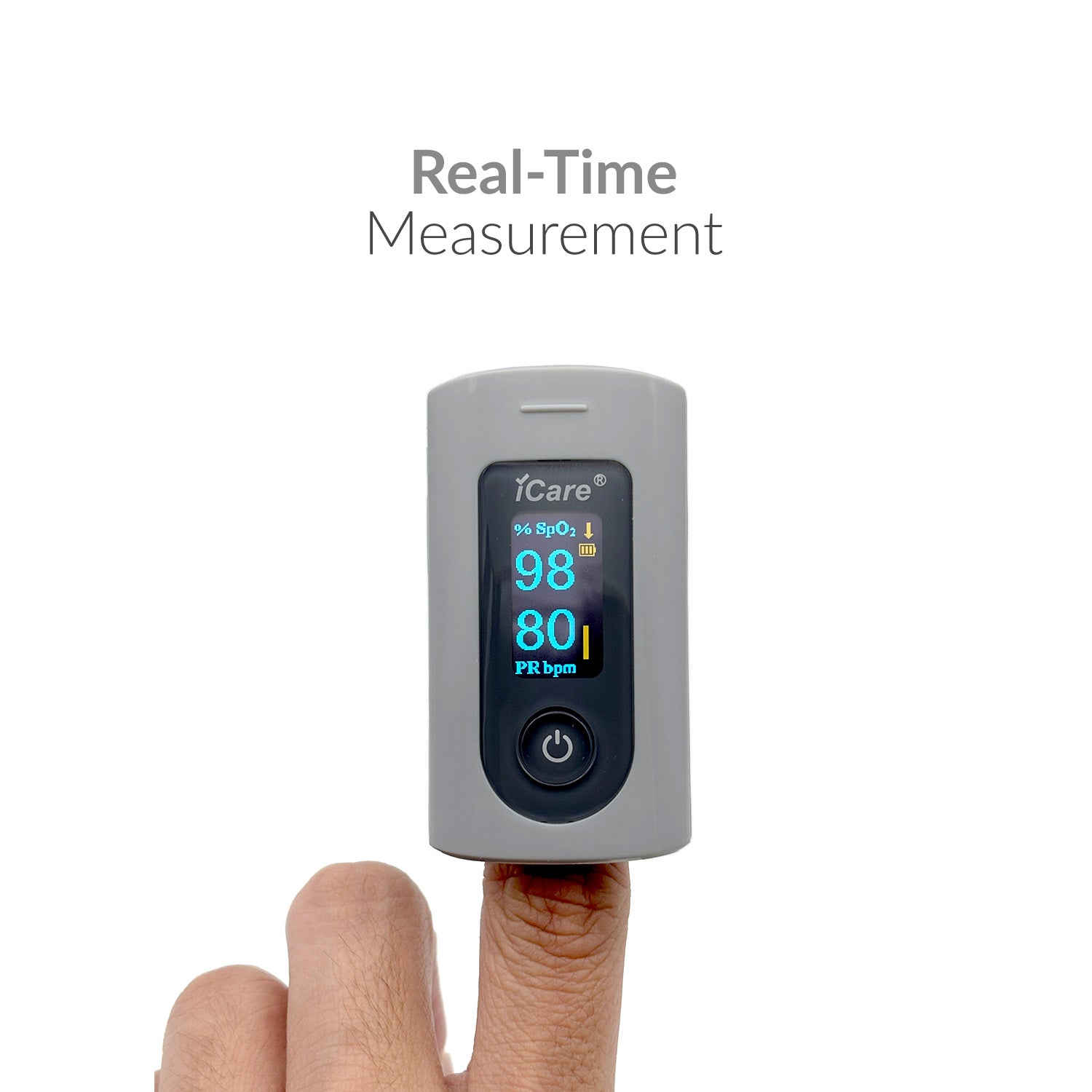

3.Plug one finger into rubber hole of the Oximeter (it is best to plug the finger thoroughly) before releasing the clamp. It is recommended to be used on the index, middle or ring finger.
4.Press the switch button one time on the front panel.
5.Do not tremble while the oximeter is working. It's better that the whole body be in still status.

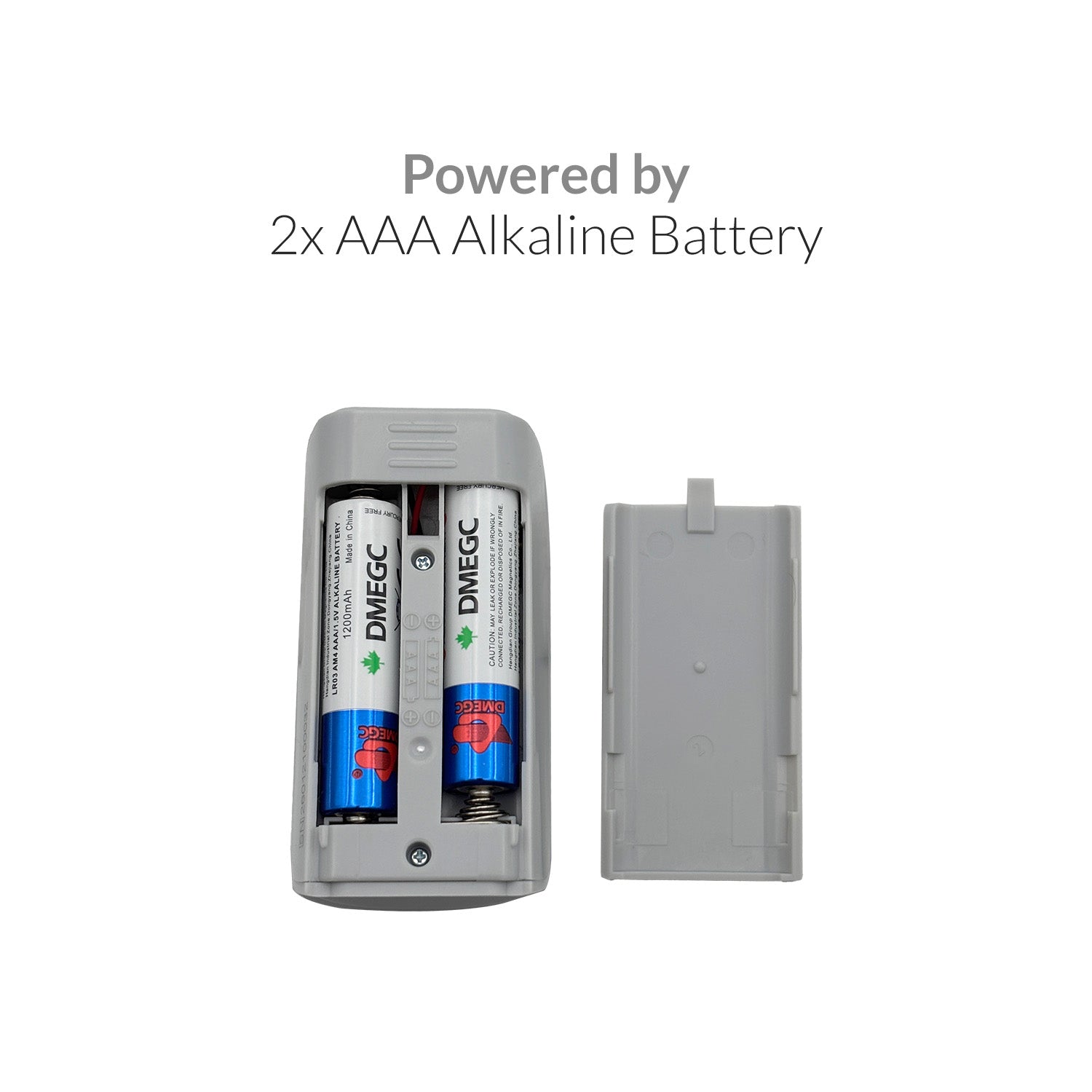

Battery Installation 1. Open the battery cover as instructed in the figures.(Pay attention to the specific model), put two AAA batteries into battery cassette in right polarities
2. Close the cover back.
Notes: Battery polarities must be correct. Otherwise, damage might occur to device.
Please put or remove batteries in right order, or it will damage the device bracket.
! Remove the battery from the product if it is not required for extended periods of time in order to avoid damage to the oximeter resulting from a leaking battery.
! Do not use the new batteries with the old ones. Alkaline battery of long service is recommended, and do not use rechargeable batteries.
Maintenance and Storage
●Under normal conditions there is no need for special protection and maintenance when using, please pay attention to the following points:
Caution: Using oximeter in required environment.
Caution: Avoid direct sunlight .
Caution: Avoid extreme infrared radiation or ultraviolet radiation.
Caution: Avoid organic solvent vapors, dust, and corrosive gas .
●Transportation and storage conditions
Temperature range: -20℃～＋55℃
Relative humidity: ≤93％, no condensation
Atmosphere pressure: 500hPa～1060hPa
●It is recommended that the product should be kept in a dry environment anytime. Moisture might affect its lifetime and even damage the product.
Cleaning & Disinfecting
● This product is a reusable non-sterile device. Please clean and disinfect according to the following methods.
Warning:
1. Never immerse or soak the oximeter.
2. We recommend cleaning and disinfecting the oximeter before or after each use, or in accordance with the policies established by the hospital, to avoid long-term damage to the oximeter and avoid cross-infection.
3. Never use cleaning agents/disinfectants other than the recommended.
4. The sensor component is not cleaned and disinfected during testing.
5. Avoid the use of metals such as steel wire brush or polishing agent abrasive material which will damage the oximeter panel.
Cleaning:
The recommended cleaning agents include: water
1. Shut down the finger pulse oximeter and remove the battery.
2. Clean the oximeter with cotton or soft cloth moistened with water.
3. After cleaning, wipe off the water with a soft cloth.
4. Allow the oximeter to air dry.
