Main Features:
Low Noise at ≤65 dB(A)
Liter Flow Range: ≥6.7L/Min
Portable & Easy to Store
Small Particle Size 0.5-10°µm
Easy Operation
Basic Specs:
Voltage: AC 220V160Hz
Power: 168VA
Medication Capacity: 8 ml
Particle Size: 0.5-10um
Sound Level: ≤65 dB(A) (1 meter away)
Average Nebulization Rate: ≥0.25mL/min (0.9% saline water)
Compressor Pressure Range: 22-58psi(150-400kPa)
Operating Pressure Range: 9.5-19psi(65-130kPa)
Liter Flow Range: ≥6.7L/Min
Operating Temperature Range: 5°C~40°C(41°F~104°F)
Operating Humidity Range: 15~80% RH
Storage Temperature Range: -25°C~60°C (-13°F to 140°F)
Dimension: 185x169x107mm
Weight: 1.3 kg

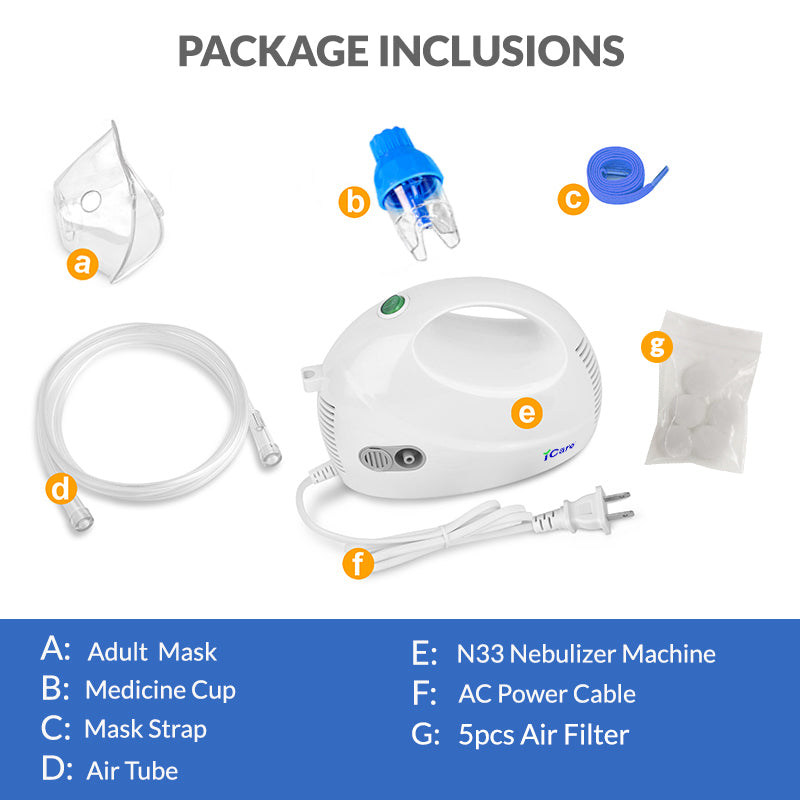

Standard Accessories: 1x N33 AeroCare Compressor Nebulizer, 1x Adult Mask, 1x Medicine Cup, 1x Oxygen Tube, 1x Strap, Air Filters (5)
Use Life: 5 Years
How To Use:
NOTE: Prior to initial operation, the nebulizer should be thoroughly cleaned. Place your Compressor Nebulizer on a flat and stable surface. Be sure that you can easily reach the controls when you are seated. Gently twist the top part of the nebulizer counterclockwise to disassemble the nebulizer.
• Fill the bottom section of the medicine cup with the medication prescribed by your physician. Be sure that the cone is put inside the bottom section.
• Gently twist the top part clockwise to reassemble the medicine cup. Be sure that the two sections are fitted well.
• Attach one end of air tube to the base of the medicine cup.
• Attach the other end of air tube to the tube connector located on the front of the compressor.
• Attach mouthpiece or mask per your choice to the top section of medicine cup.
• Plug the power cord into an appropriate electrical outlet. Make sure at this stage, the power switch is at “Off” status.
• Press power switch to begin your prescribed treatment
IMPORTANT:
• The compressor motor has a thermal protector, which will shut off the unit before the unit is overheated, When the thermal protector shuts the unit off, please:
• Switch off the unit.
• Unplug the unit from the electrical outlet.
• Wait 30 minutes for the motor to cool down before another treatment. Make sure the air openings are not obstructed.
When treatment is finished, shut off the unit and unplug it from the electrical outlet.
Cleaning:
It is recommended that the medicine cup, mouthpiece and mask be thoroughly cleaned with hot water after each use and cleaned with a mild detergent after the last treatment of the day. If your physician or respiratory therapist specifies a different cleaning procedure, follow their instructions.
Rinsing:
• Disconnect the air tube, medicine cup, mouthpiece and mask.
• Gently twist the medicine cup to open it.
• Rinse the medicine cup, mouthpiece and mask with water.
• Dry them with clean, soft towel or let it air dry.
• Reassemble the medicine cup when completely dry and put these parts in a dry-sealed container.
Disinfecting:
Please follow the following steps to disinfect your nebulizer unless otherwise specified by your physician. It is suggested that the unit is disinfected after the last treatment of the day.
• Use one part white vinegar with three parts distilled water. Make sure mixed solution is enough to submerge the nebulizer, mouthpiece, and mask
• Complete Rinsing Steps 1-3.
• Wash Medicine Cup, mouthpiece and mask in warm water and a mild detergent, then wash them in hot tap water.
• Submerge these parts in the vinegar and water solution for thirty minutes.
• Complete Rinsing Steps 3-5.
Cleaning the compressor:
• Wipe daily with a damp cloth.
• Do not use any powdered cleaners or soap pads, which may damage the finish.
Filter change:
Do not use cotton or any other materials. Do not wash or clean the filter. Only use filters supplied by your distributor. And do not operate without a filter. Change the filter every 30 days or when the filter turns gray.
Changing procedure:
• Remove the filter cover.
• Replace the used filter with a new one.
• Replace the filter cover.
