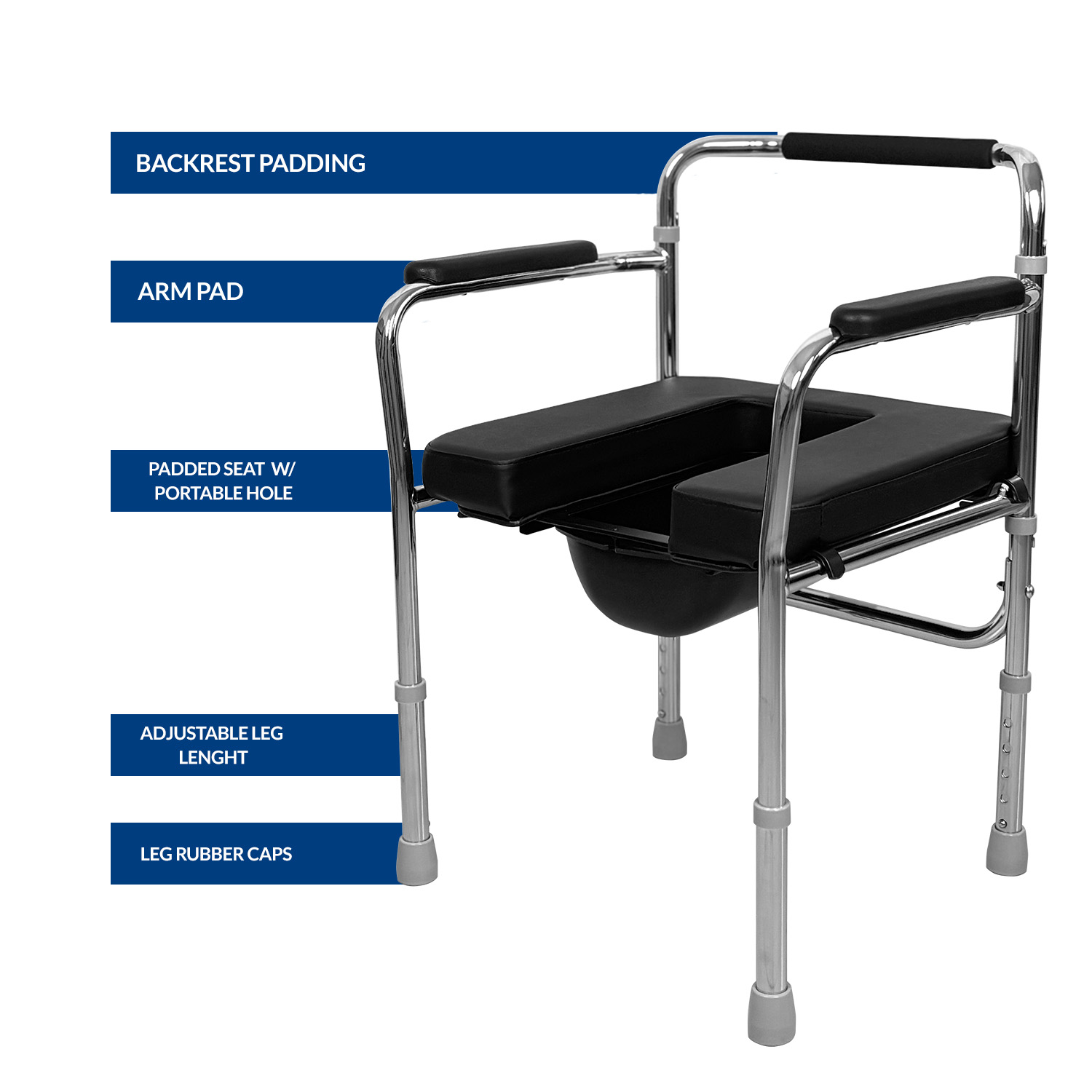

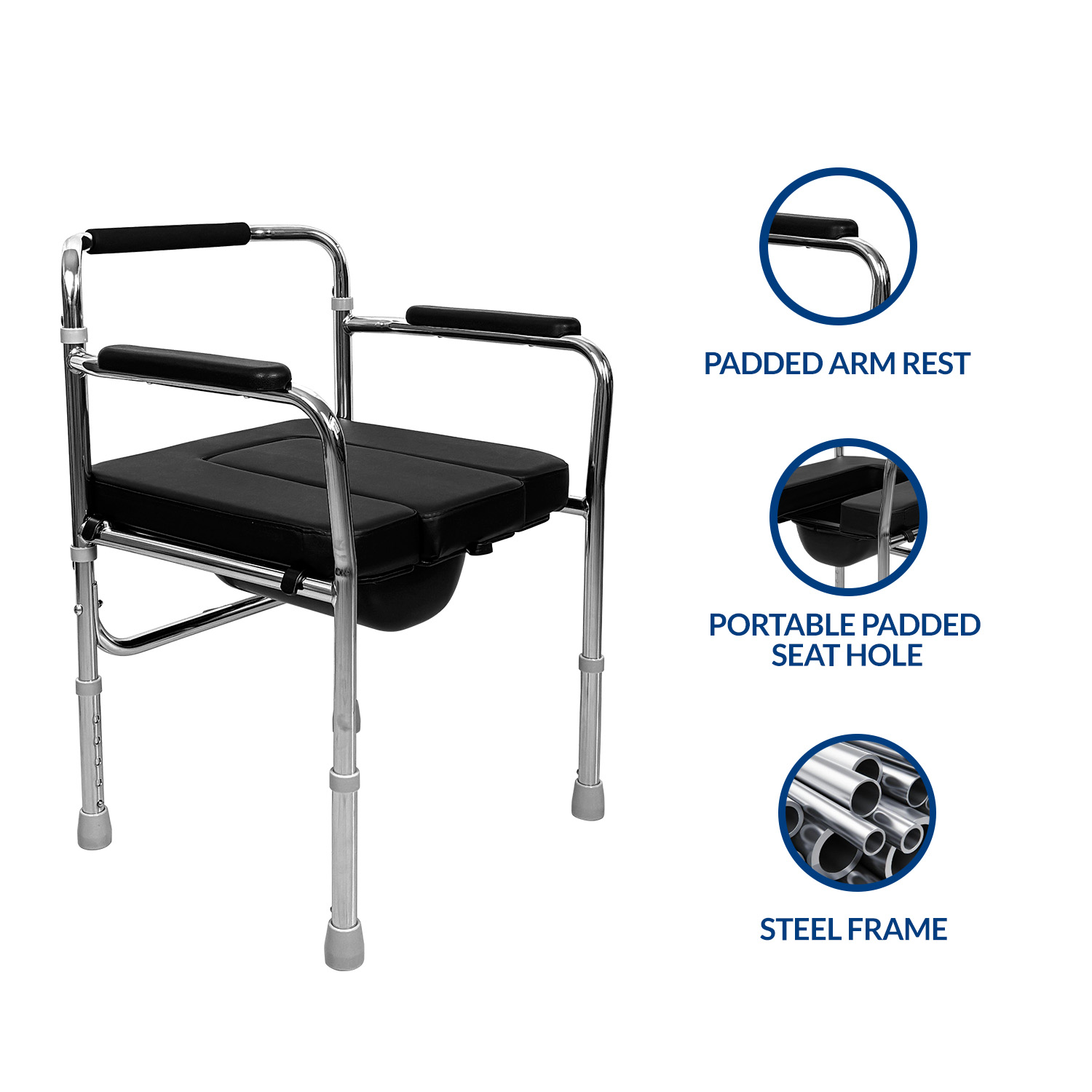

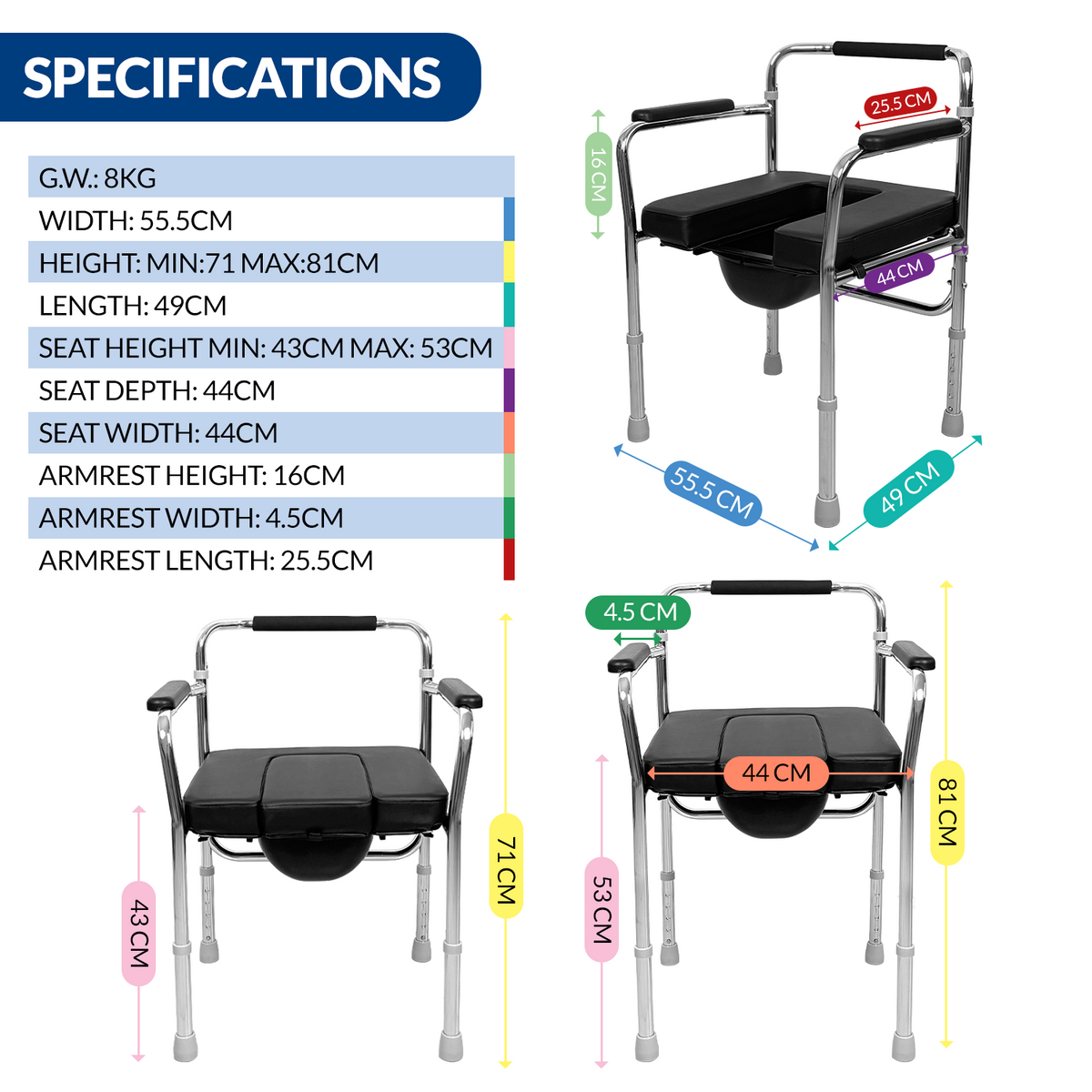

• Adopt HPCC Steel Plating
• Foldable Steel Frame
• Comfortable Seat
• Removable Bedpan

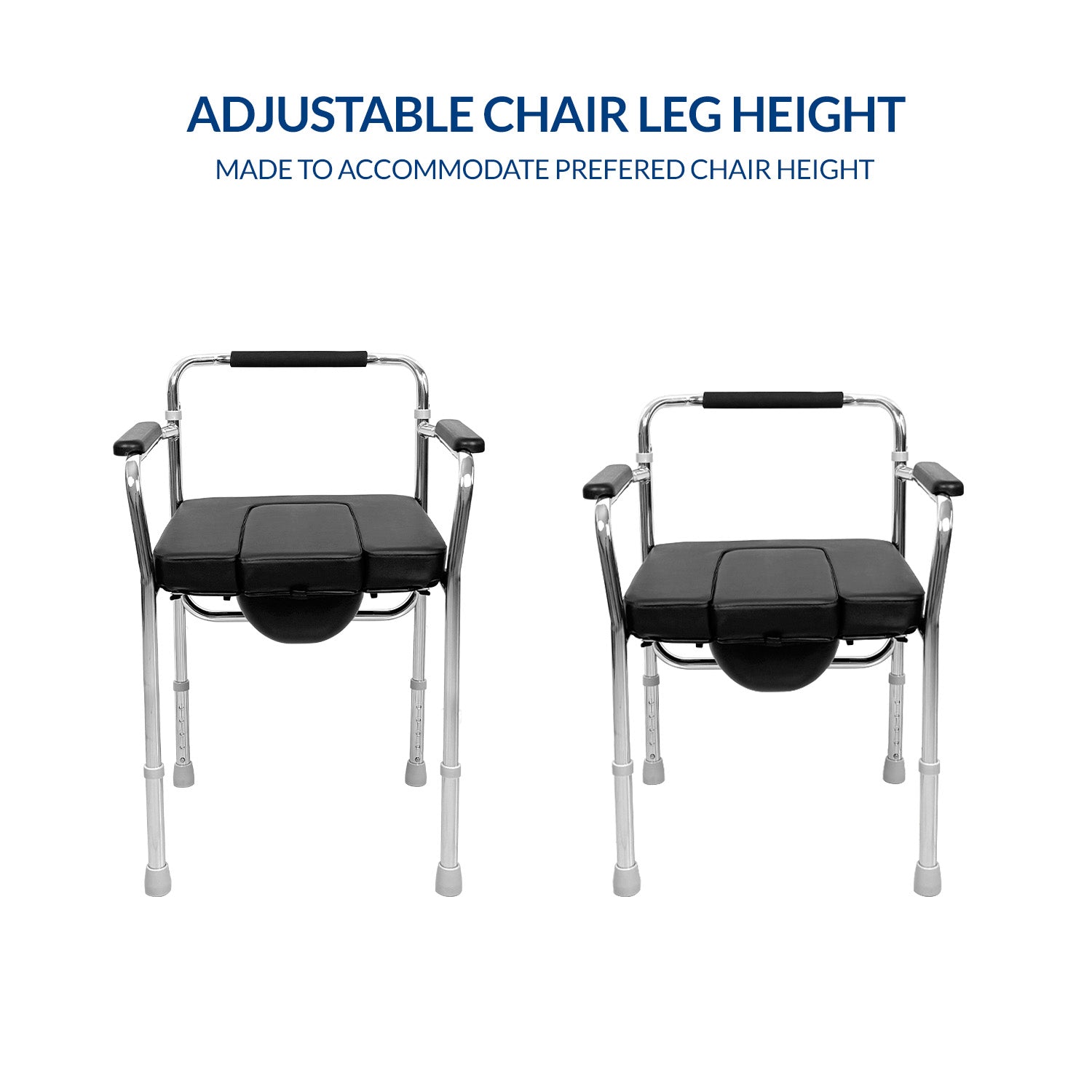

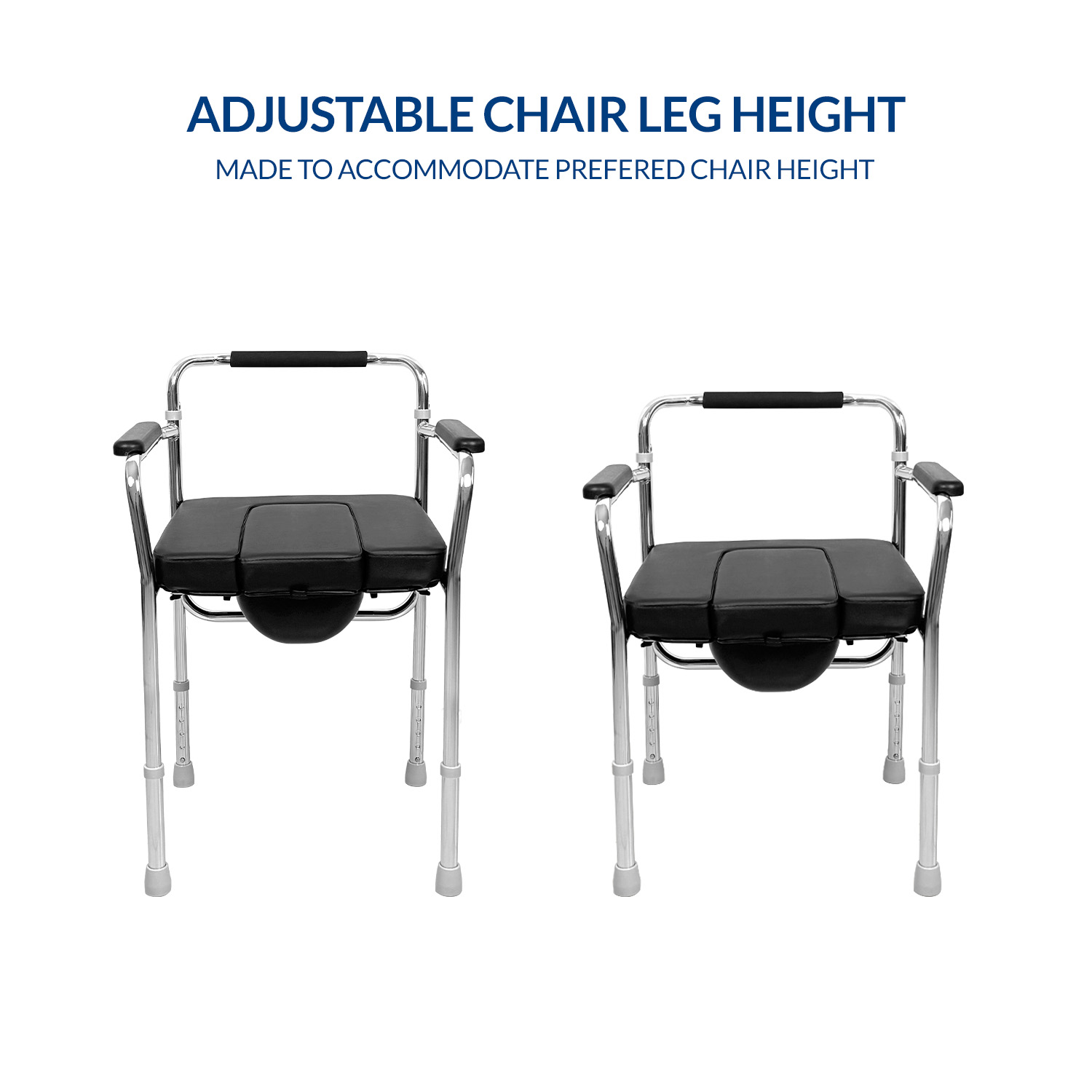

• Adjustable Leg Height
Selection of Commode chair:
MC51 is foldable pull-out type with adjustable height of
five levels.

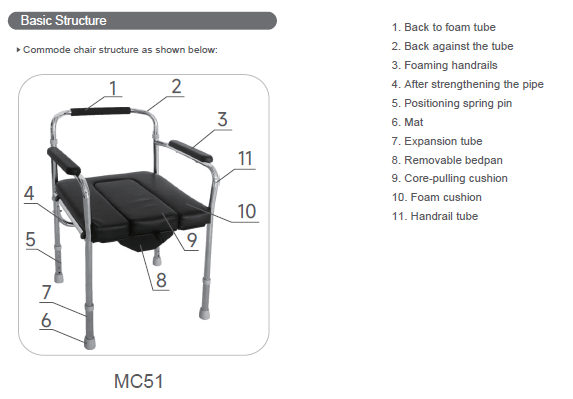

How to adjust height: One hand and hold the elastic
positioning pin (5), the other hand holding the eleastic tube
assembly, adjusted to the appropriate location, and ensure
the elastic positioning pin (5) snap securely to prevent
danger.
How to swing away armrests: The fastening pin (11) inward
pressure is applied, and the armrest (2) flip-down armrest
placed to reach the lowest end of armrest (2) rotate it, on
the contrary, just grab the armrest (2) Gently lift it till you hear
a "click" sound that reaches the armrest (2) positioning, in a
horizontal position.
Installed the seat frame: put the commode seat frame (3)
correctly into the seat frame (4) across the tube, ensuring
appropriate fastening, be able to flip up and down.
Installation of MC51 foam cushion:
Open the armrest tube (11), clamp the foam seat (10) onto
the strengthening tube of the armrest tube, ensure that the
fastening is secured with the appropriate knob, and then
clamp the bedpan (8) from behind under the foam seat (10)
until it reaches the positioning bolt of the toilet plate.
How to use: Before use, turn up the toilet cover (1) close to
the back, then take out the toilet barrel cover (7), lay the
commode seat frame (3) flat, and then use it. After use, lift
the commode seat frame (3) up, and cover the toilet bucket
(8), so as to facilitate the smell of urine.
Usage of MC51: The core-pulling cushion (9) of the foam
cushion(10) can be taken out before use. After use, pull
out the removable bedpan (8) from behind and below, and
then cover the foam cushion (10) and the core-pulling
cushion (9).
