OX002 Oximeter Specifications:
1.Display Type: LED SpO2
Display range: 0%～100%. Pulse Rate Display range: 25bpm～250bpm.
2.Power: Two AAA 1.5V alkaline batteries.
3.Working Current: Less than 40mA at rated voltage 3V.
4.Measurement accuracy:
SpO2 Accuracy(Arms): ±2% in the range of 70%-100% of SpO2; No definition for SpO2 under 70%.
Pulse rate: 25bpm～250bpm, accuracy(Arms): ±1% or ±1bpm(larger)
Note: The accuracy(Arms) is calculated by the measurement values after a statistical distribution；compared to the reference device in a control study, approximately 2-thirds of the values were at(over or below) the accuracy(Arms) value.
5.Anti-interference ability of ambient light: Deviation in blood oxygen content is less than ± 1% when measured under indoor nature light / existing lighting and measured in the dark room.
6.The product will automatically shut down when there is no signal detected for about eight seconds.
7.Dimension: Length: 58mm Width: 33mm Height: 34mm Weight:36g approximately (without batteries).
8.Working Environments: Ambient temperature: 5℃～40℃ Relative humidity: ≤80％ Atmospheric pressure: 860hPa～1060hPa.
9.Operation mode: Continuous operation.
10.Device response time.(See Figure 2)
11.Peak wavelengths and light output power： Emission wavelength range 600nm-1000nm, radiation intensity is less than 15mW/sr (20mA). Information of wavelength range may be of especial use to clinical doctors.
12.Description of the effect on displayed and transmitted SpO2 and Pulse rate data value：
1）data averaging and other signal processing.
2）the data update period:≤3 pulse rate cycles, less than 30s.
Note: Data processing and update will not affect pulse rate and SpO2.
13.The pulse waveform has been normalized, the measurement value is the best when the waveform is smooth and stable.
14. Internally Powered ME Equipment
15.TYPE BF APPLIED PARTS
16.Degrees of protection provided by enclosures (IP code)：IP22.

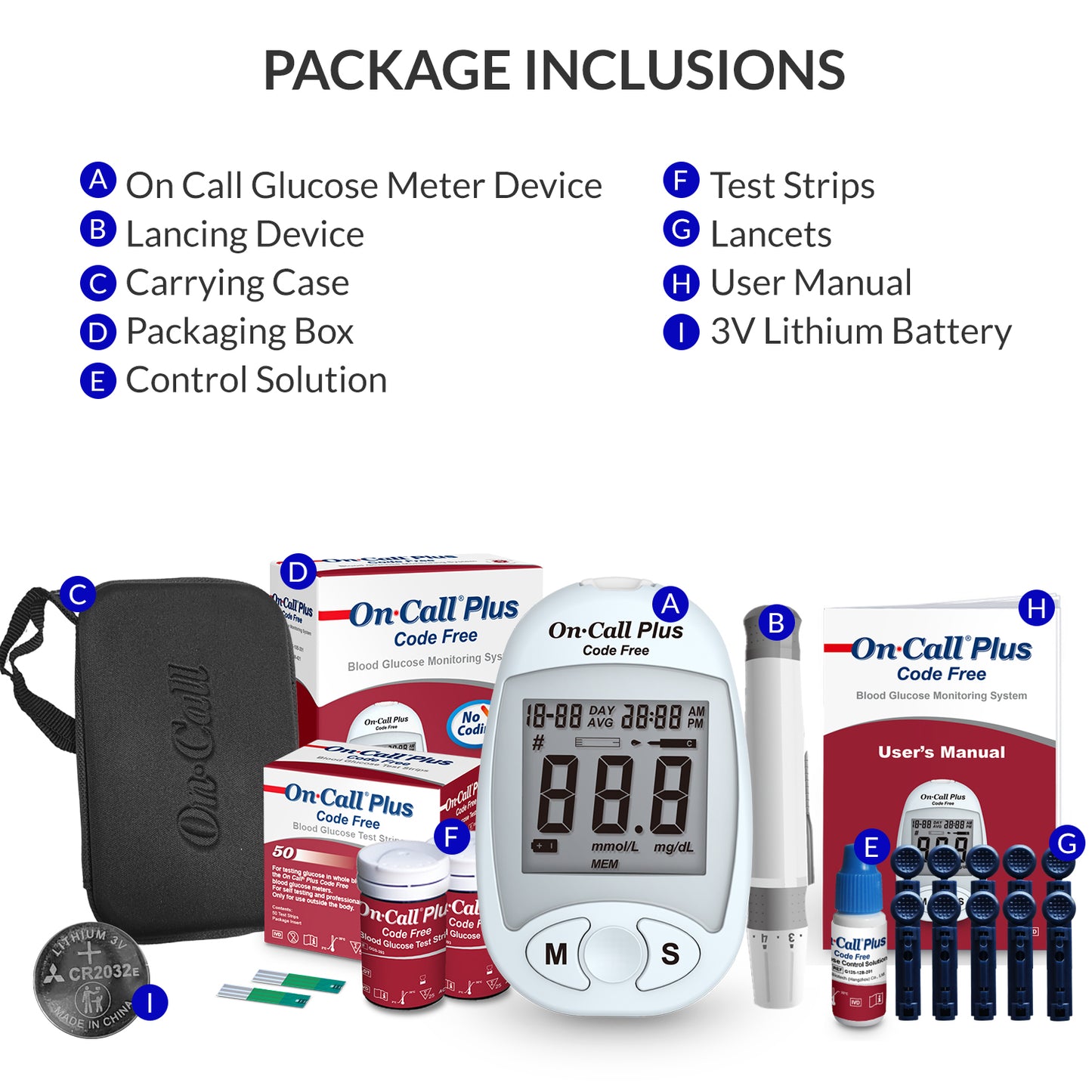

On Call Plus Blood Glucose Meter Key Specifications:
Blood Volume: The device requires an incredibly small blood sample of just 0.5 microliters, ensuring a minimally invasive and virtually painless testing experience.
Test Time: With a rapid test time of only 10 seconds, users can obtain accurate blood glucose readings swiftly, allowing for quick and convenient monitoring.
No Coding: The On Call Plus Code Free system eliminates the need for manual coding, streamlining the testing process and reducing the chances of errors. Users can enjoy hassle-free testing without the requirement for code strips.
Power Source: The device operates on a reliable 3.0-volt coin battery, providing long-lasting power for consistent and uninterrupted usage. This ensures that users can rely on the device for extended periods without frequent battery replacements.
Automatic Shut Off: To conserve battery life, the system features an automatic shut-off mechanism after 2 minutes of inactivity. This not only enhances energy efficiency but also serves as a safety measure to prevent unnecessary power consumption.
Memory Capacity: The On Call Plus Code Free system boasts a generous memory capacity, capable of storing up to 300 test results. This feature enables users to track their blood glucose levels over time, facilitating effective diabetes management.
CK239 Product Description:
• 1 Year Warranty
-
4 Ways for Power Supply
-
Support Type C USB Cord
-
irregular Heartbeat Detector
-
Small arm cuff (22-32cm)
-
Large LCD Screen
-
Light Display
-
Cuff Wrapping Guide
-
Excessive Body Motion Detector
-
Two User Mode
-
180 Memory Storage
-
Date / time function display
-
Advanced Averaging
-
BP Level Indicator
-
Automatically turn off without any operation after 1 minute.
