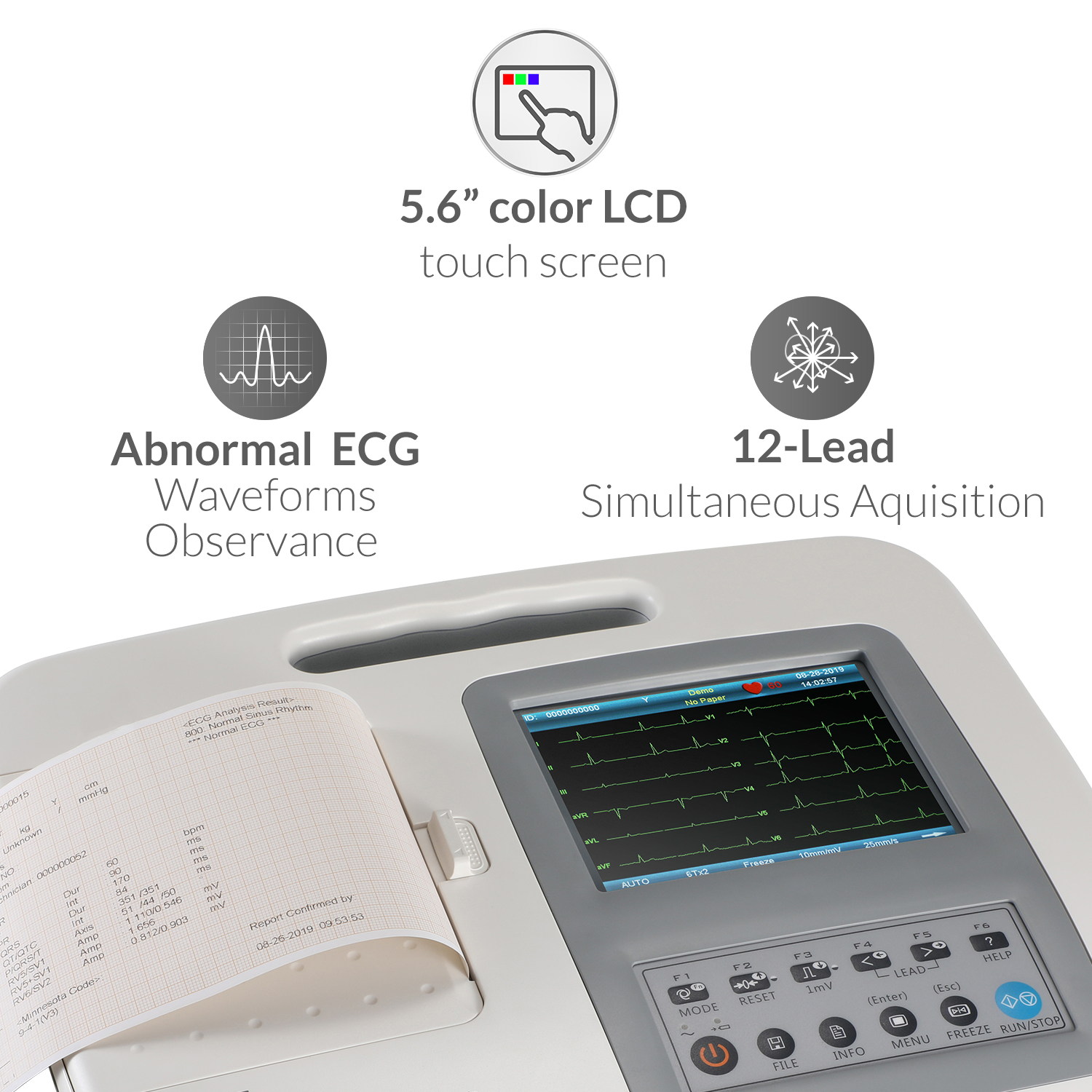

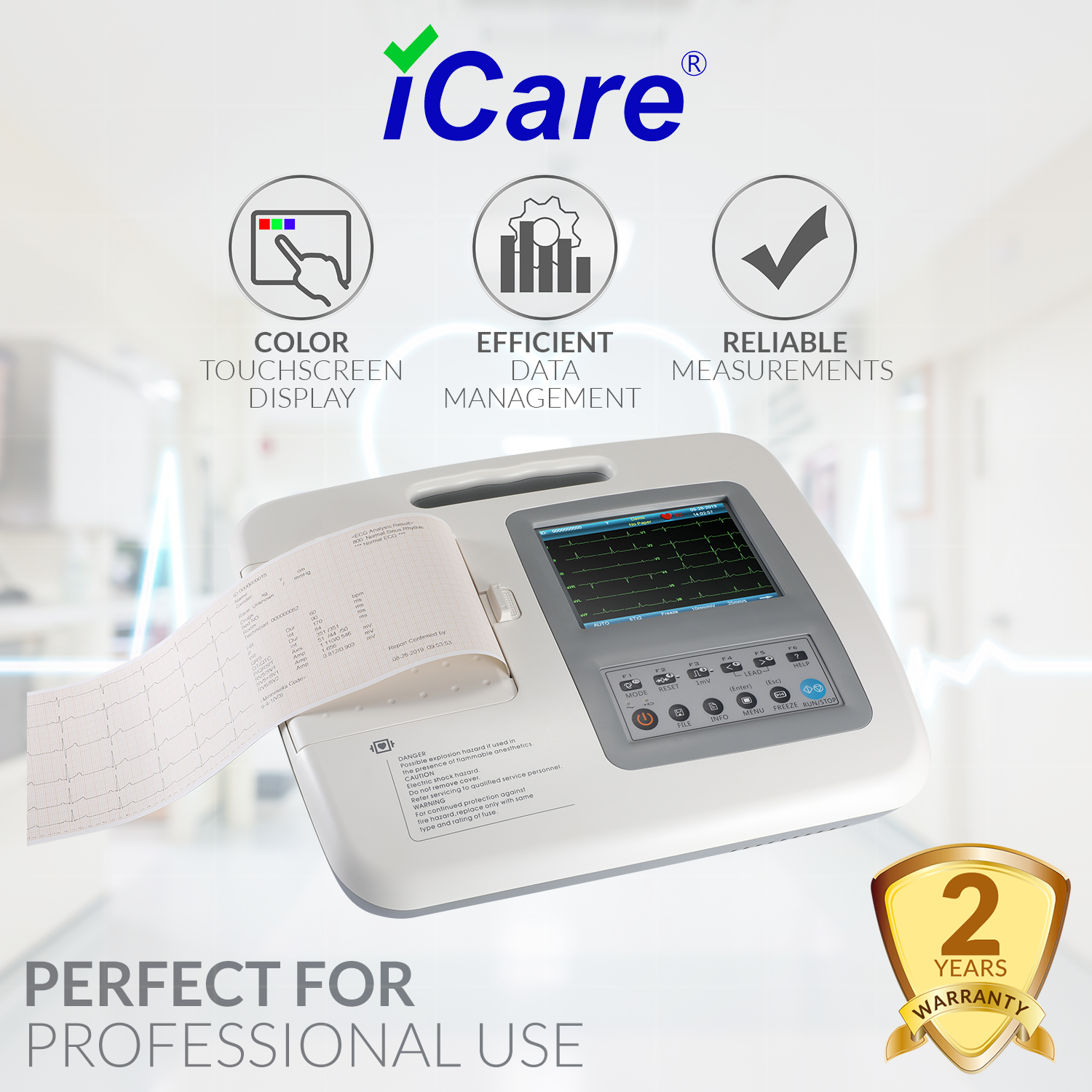

• 5 6 inch color LCD touch screen
• 12-lead simultaneously acquisition
• function to observe any abnormal ECG waveforms
• Data management software on PC(optional)
• Large internal capacity upto 5000 files more ECG files can be stored via USB port
• Internal memory: 180 ECG files

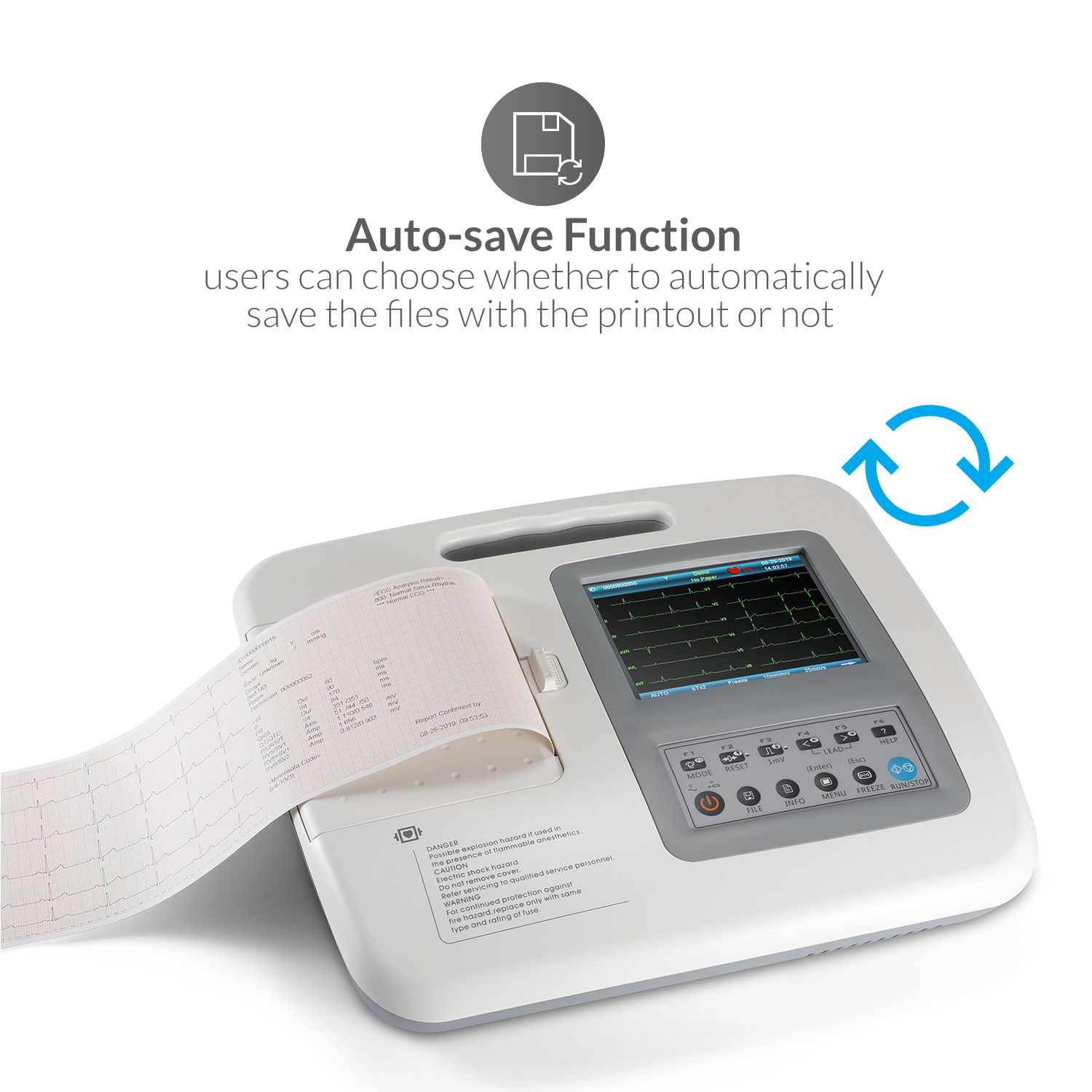

• Auto-save function: users can choose whether to automatically save the files with the printout or not
• Reliable automatic measurement & Interpretation tested with CSE&AHA database

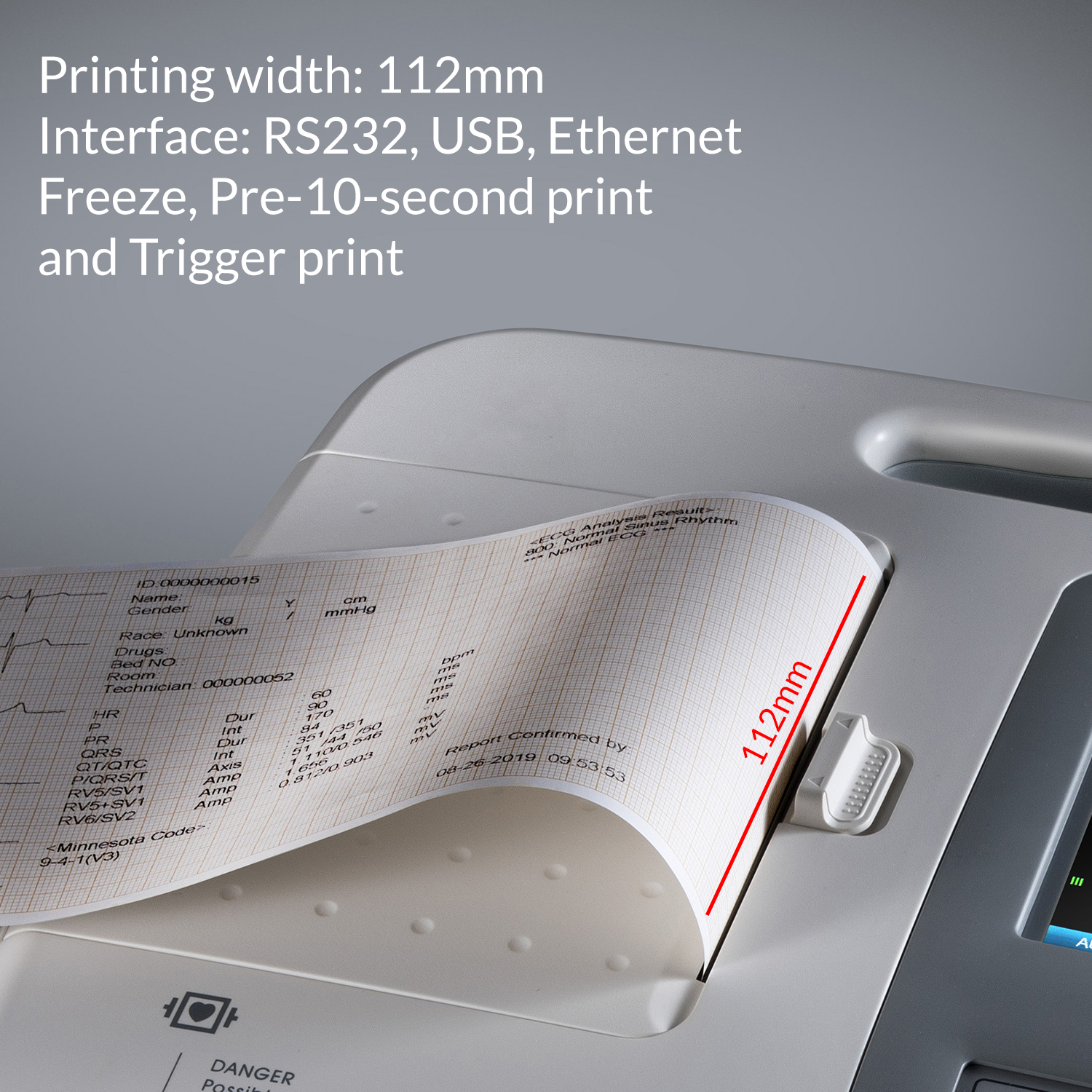

• Printing width: 112mm Interface: RS232, USB, Ethernet
• Freeze, Pre-10-second print and Trigger print

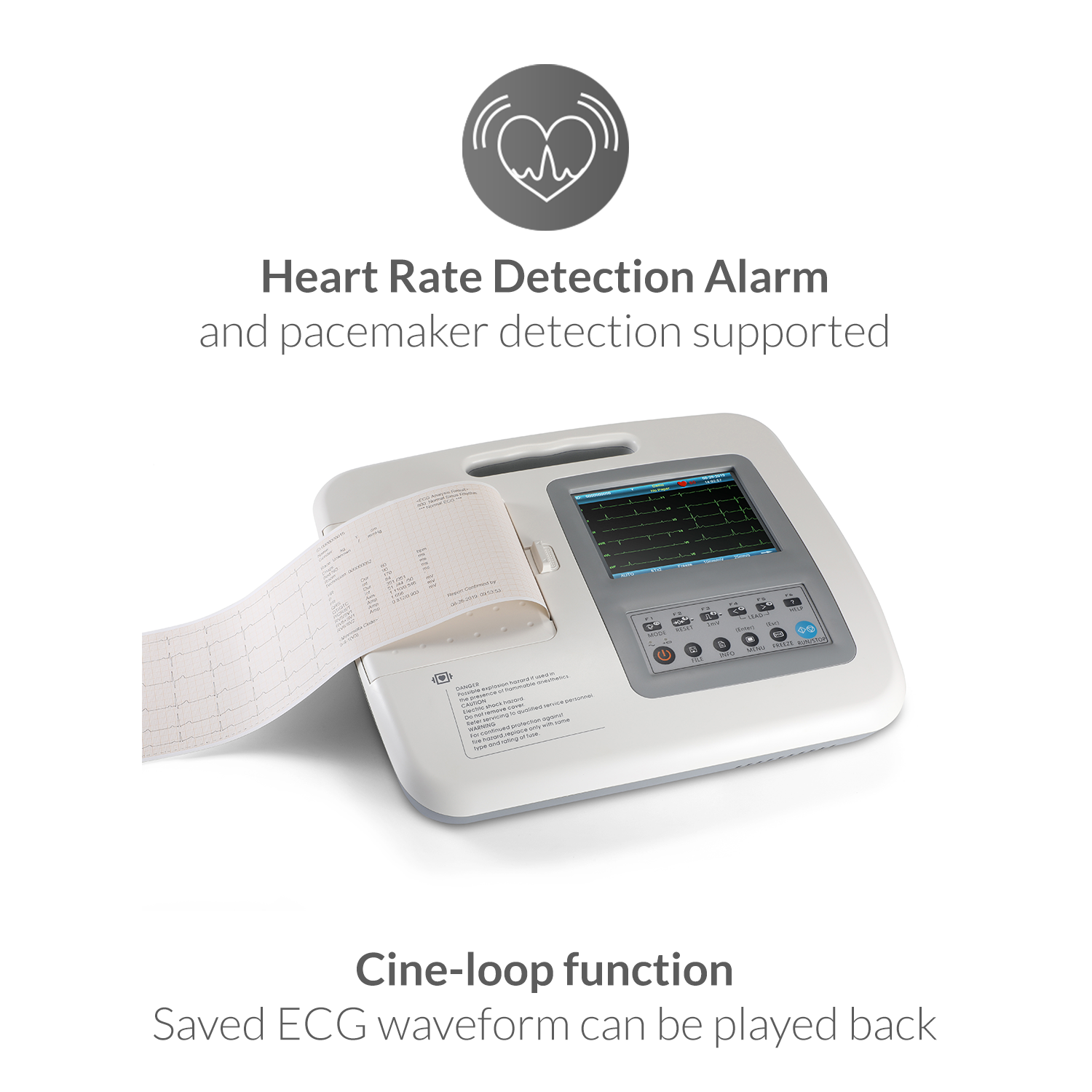

• HR detection alarm and pacemaker detection supported
• Cine-loop function: saved ECG waveform can be played back

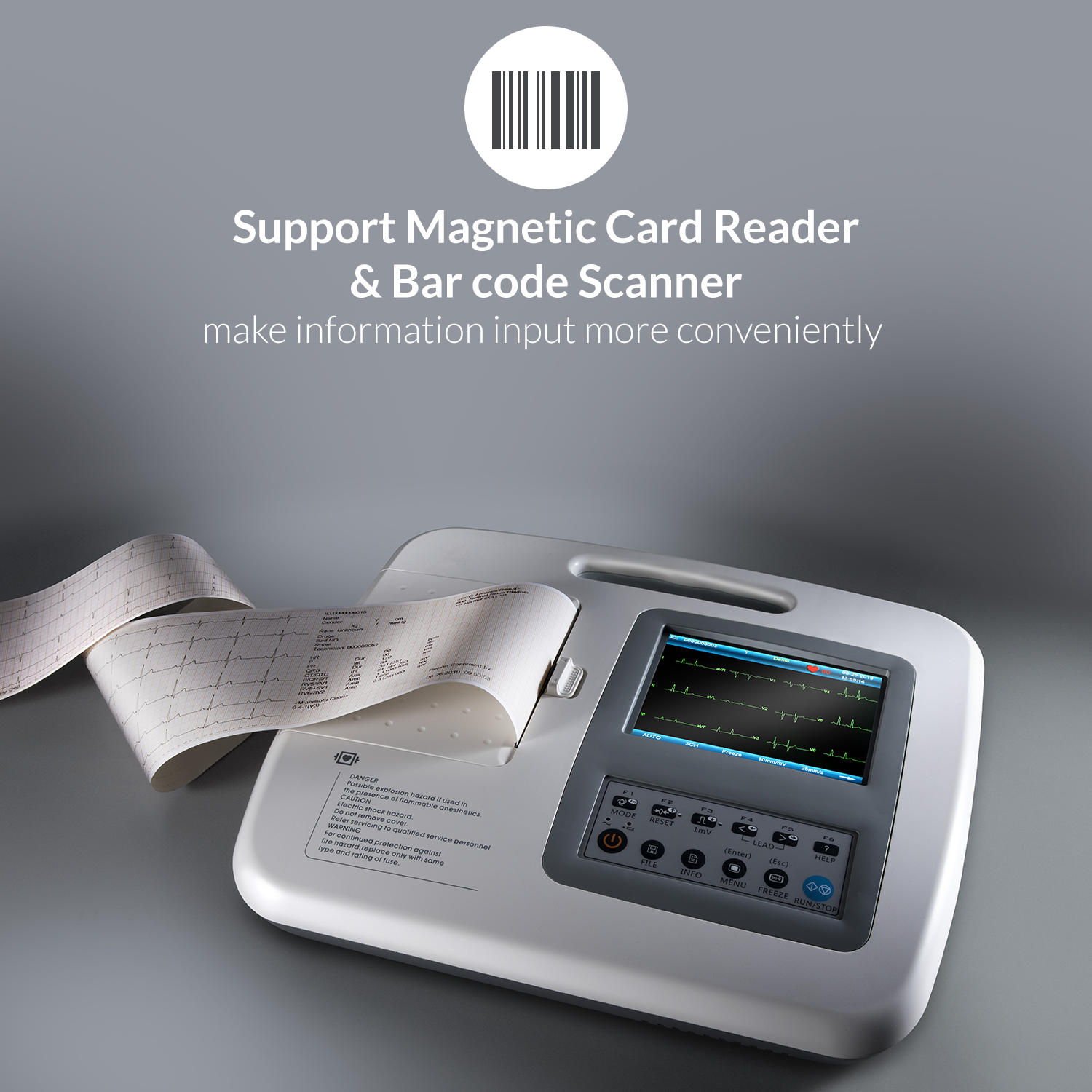

• Support magnetic card reader, bar code scanner, make information input more conveniently
• Support external laser printer to achieve A4 size report output
• No Ink needed for printing
Safety Classification Type CF
Safety Standard MDD93/42/EEC, IEC60601-2-25 IEC60601-1, IEC60601-2-51:2003,
ANSI/AAMI EC-11, EN 1441-1997
Input Circuit Floating, protection against defibrillator andpacemaker detection
Lead Standard 12-lead
Input Impedance ≥50ΜΩ
Input Circuit Current ≤50nA
Leakage Current <10μA
Calibration Voltage 1mV±2%
A/D Convertor 24bits
Frequency Response 0.05Hz~165Hz
Time Constant ≥3.2s
Noise Level <12μVp-p
Filter AC: 50/60Hz (-20dB); EMG:25Hz/35Hz/45Hz(-3dB);
ADS and Baseline auto-adjustment
Sensitivity Auto, 2.5, 5, 10, 20,40 (mm/mV) ±5 %
Measurement HR, PR/QT/QTC
Interval, P/QRS/T Axis etc.
Patient Data Date, time, ID, name, gender, age, height,weight, blood pressure, etc.
System Data Sensitivity, Speed, Institution etc. AnalysisReport On/Off selectable
Printer High speed and sensitivity thermal dot recordingsystem
Printing System High speed, high sensitivity thermal matrixprinting system
Paper Speed 5/6.25/10/12.5/25/50mm/s (±3%)
Printing Paper Roll paper112mm x 20m(30m)
Power Supply AC: 100V-240V(±10%), 50/60Hz(±1Hz)
DC: More than 2-hour continuous operation time with lithiumbattery after fully charged
External Input 10mm/V ± 5%;
Input Impedance=100KO
External Output 1.0V/mV ± 5%;
Input Impedance=100O
EquipmentSize: 345 x 300 x 80mm
Carton size 400 x 180 x 335mm
Net weight 2.5Kg(battery included)
Gross weight 4.5Kg
Power Supply
1) AC Power SupplyRated voltage:100-240V
Rated frequency: 50/60Hz
Rated power: 60VA
2) Built-in Lithium Rechargeable Battery
Rated voltage: 14.4V
Rated capacity: 2200mAh
3) Fuse: T2AH250V 05x20

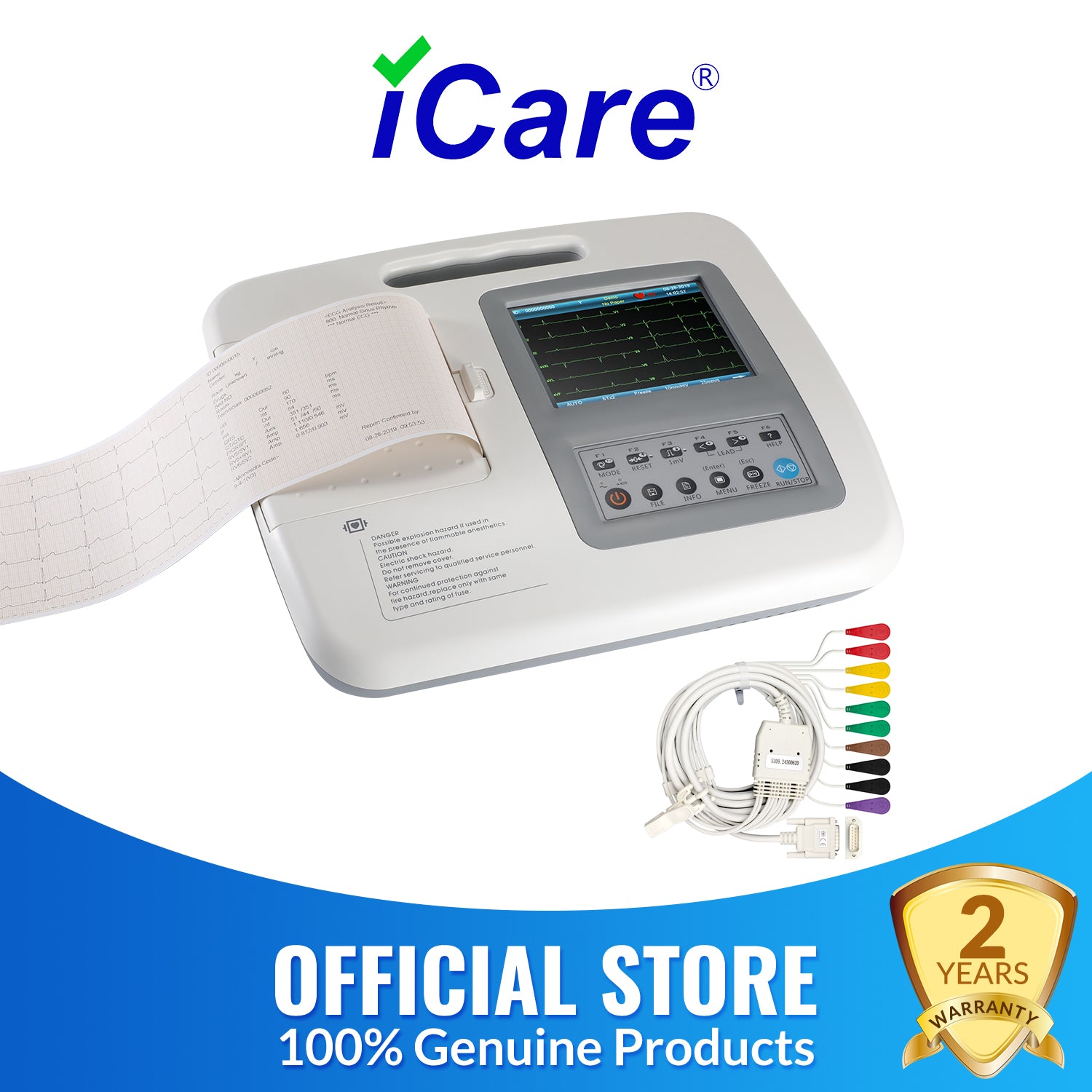

Function Features
ECG-1106L has following features:

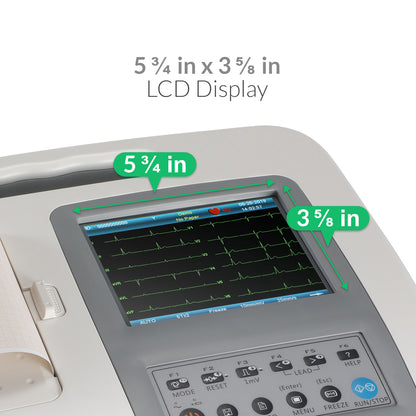

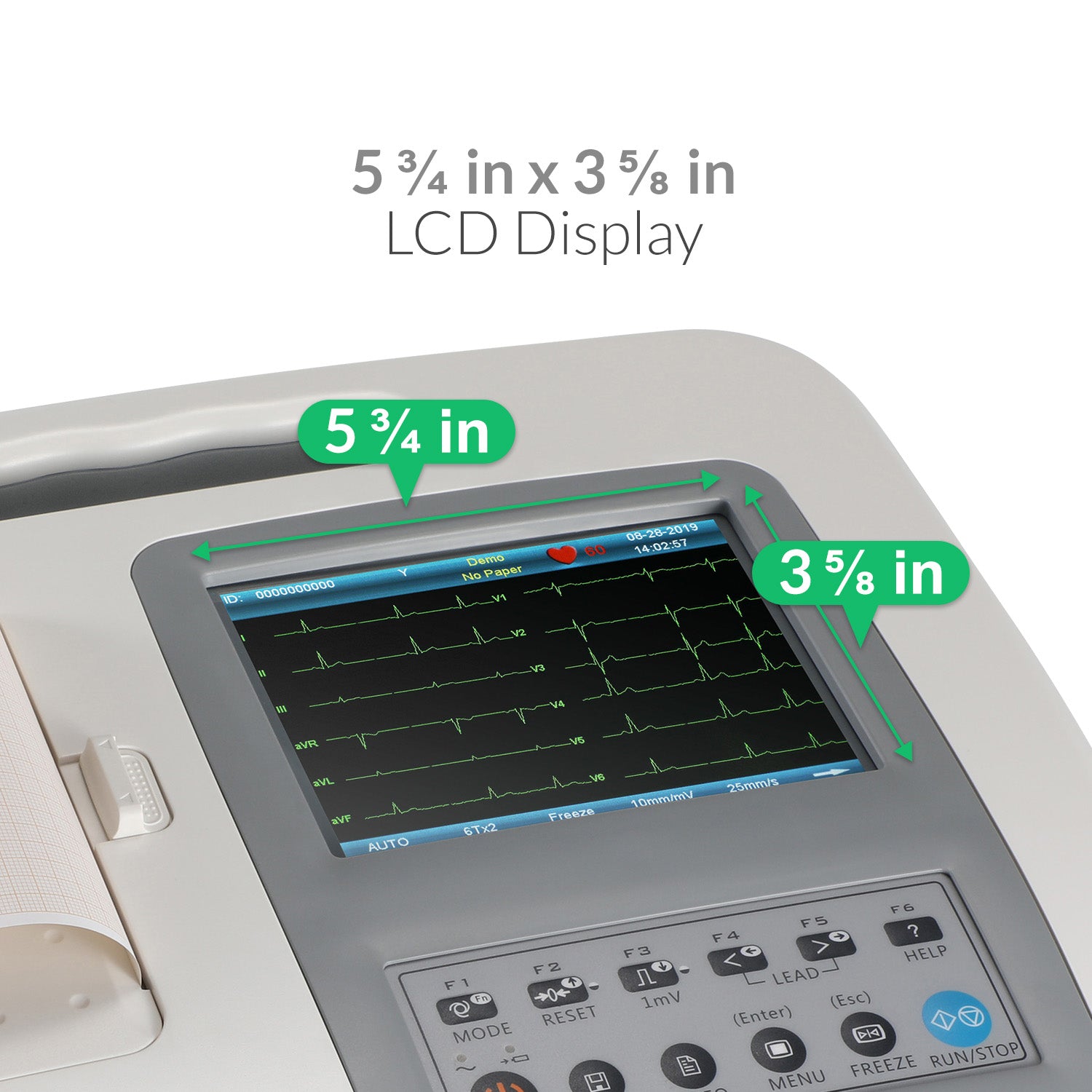

• 5.7” high bright LCD, real-time display of 12 channel ECG waveforms
• Modern in design, easy to carry
• Light-touch keys & touch screen, contribute to easy and convenient operation
• Simultaneously acquisition of 12-lead ensures reliable data for clinical diagnosis
• Application of digital signal processing technique which can effectively restrict theinterference caused by baseline drift, HUM, or EMG
• ECG measurement and analysis function reduce the physician's workload
• Pre-10-second printing function helps the doctor to print out any abnormal ECG waveform
•Three kinds of operation modes: AUTO, MAN, RR ANA. 5 manual print types: 6CH, 3CH3CH+1rhy, 3CH+3rhy, Test; 5 automatic print types: 6Tx2, 3x4+3rhy, 3x4+1rhy, 3x4 andAverage template;
• Sampling mode: real-time sampling, pre-sampling, period sampling and trigger samplint
• It can connect with laser printer, bar code scanner, magnetic card reader
• It has freeze, print preview and waveforms recall function
• Clinical information: Patient D, gender, age, height, weight, technician, doctor, race, bernumber, room, blood pressure and hospital information can be edited easily.
• To observe abnormal heartbeat from rhythm lead5
• Built-in ECG simulator5
• AC(50/60Hz) and battery dual power supply, aptitude protection circuit of over load or over voltage
• High resolution thermal dot-matrix printing system which produces clear and accurateprintout of waveforms and characters
• Automatic adjustment of baseline for optimal recording
• Built-in Help Function: electrode positioning, ECG basic knowledge, common trouble-shooting and so on
• 5000 ECG files can be saved in the ECG.
• Flexible saving interface. Saved ECG files can be displayed in image-text or list format, easy for search
• Auto-save function: after printing, the printed ECG file will be automatically saved
ACCESSORIES

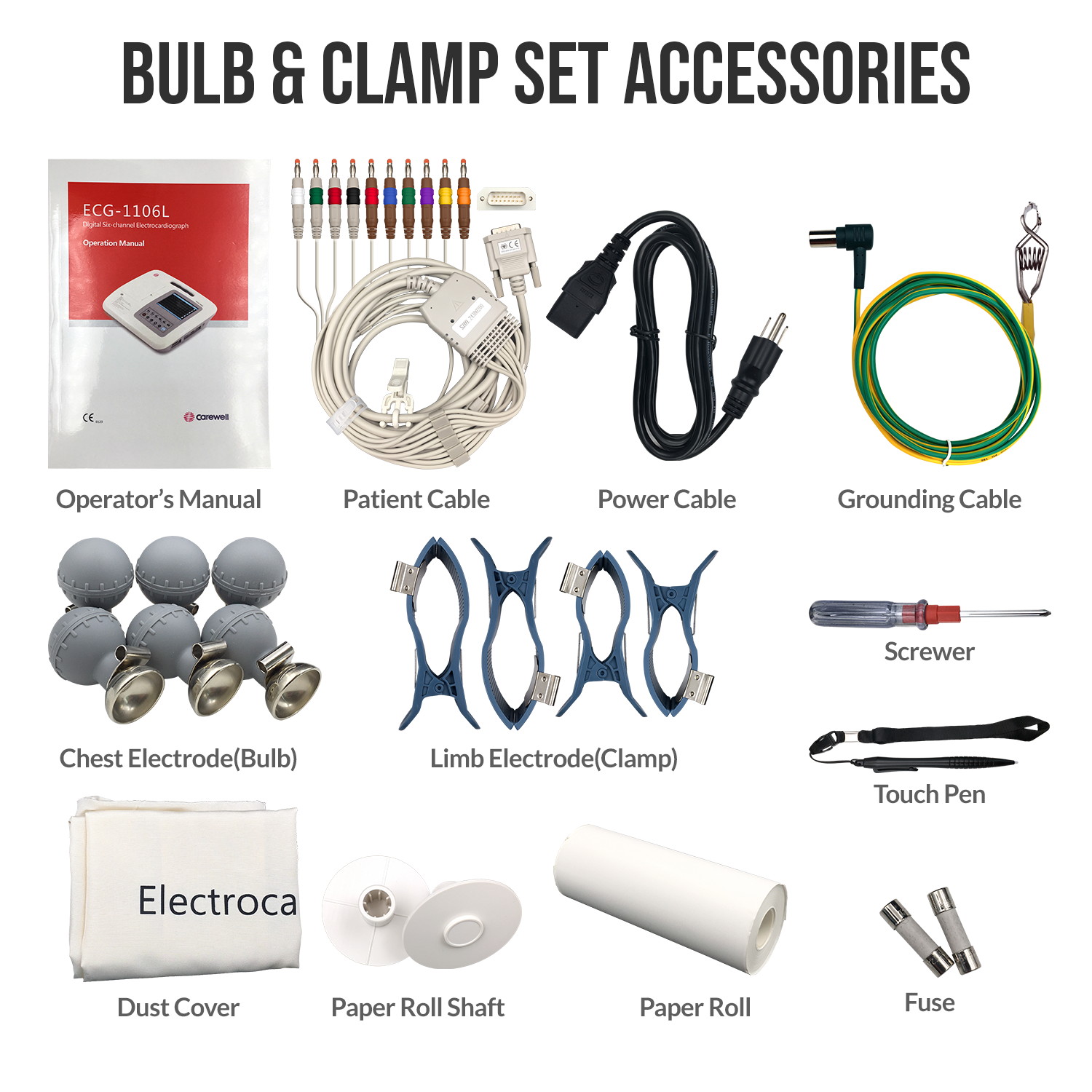

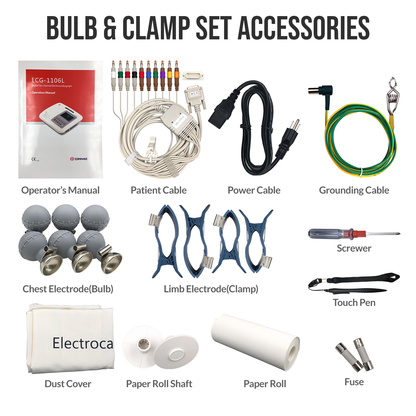

FOR BULB & CLAMP SET:

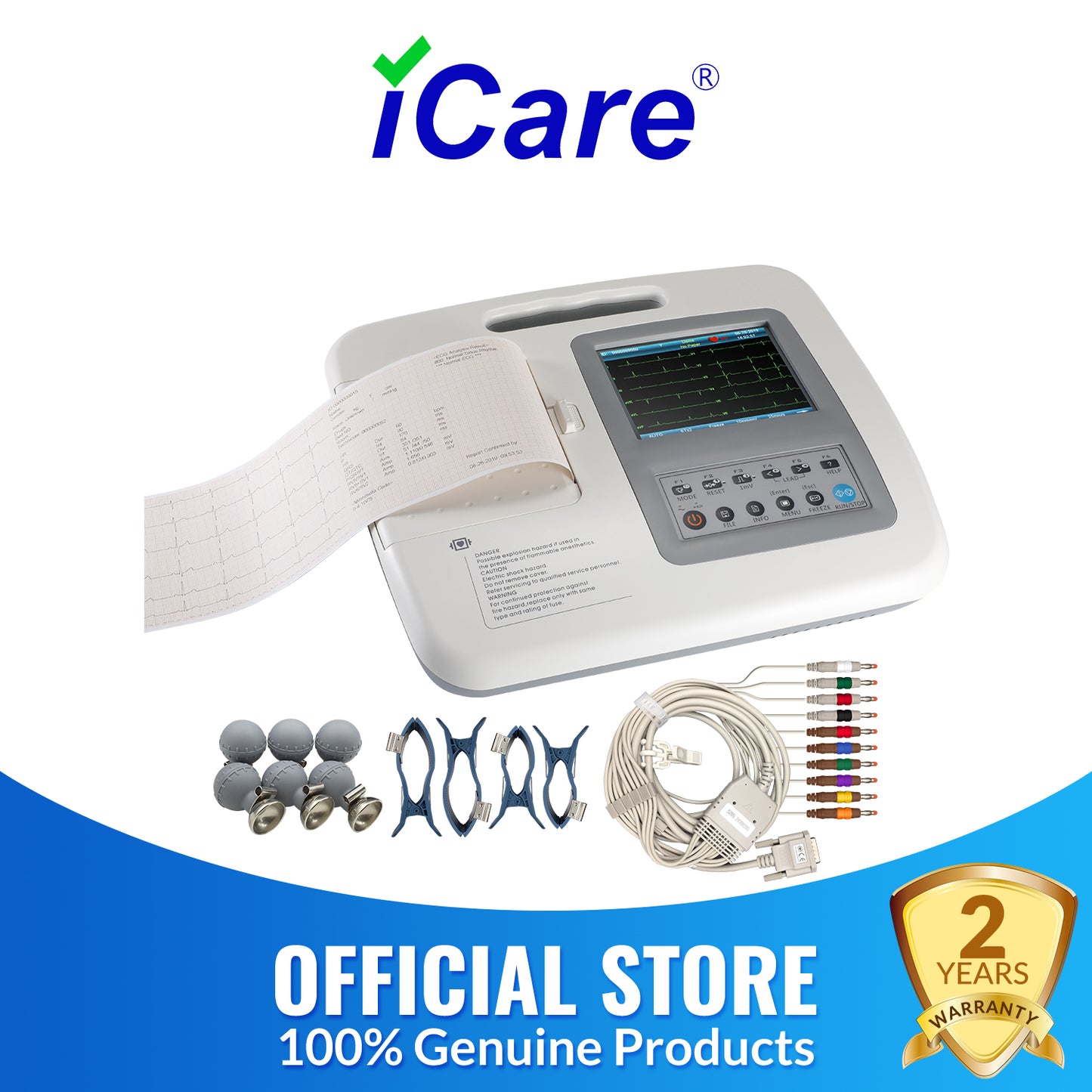

1x Main Unit,
1x Battery(already inside main unit),
1x Patient Cable(Bulb & Clamp Type),
6x Chest Electrode(Bulb)
4x Limb Electrode(Clamp)
1x Power Cable,
1x Grounding Cable,
2x Fuse,
1x Paper Roll Shaft,
1x Paper Roll,
1x Screwer,
1x Operator's Manual,
1x Dust Cover
ACCESSORIES

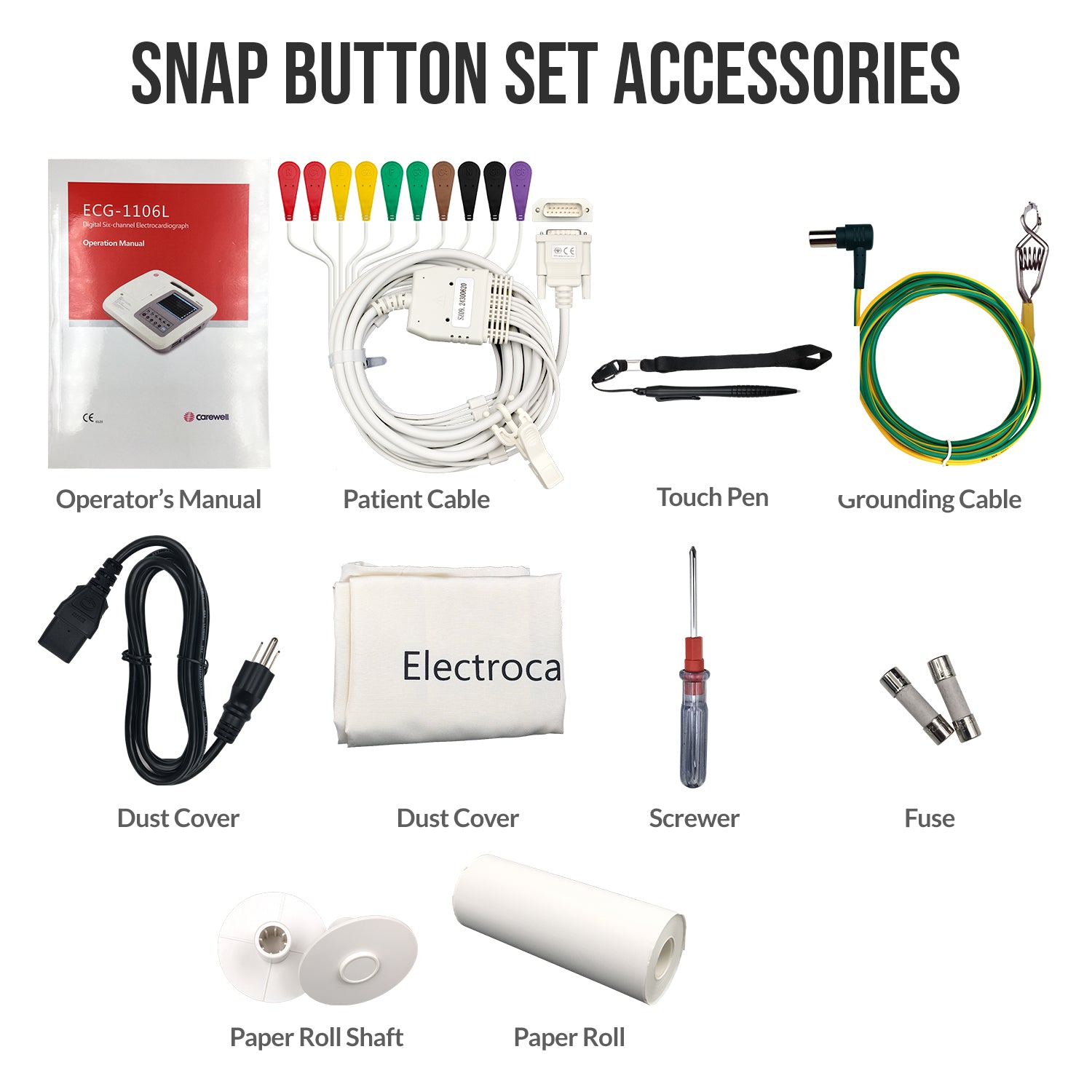

FOR SNAP BUTTON SET:
1x Main Unit,
1x Battery(already inside main unit),
1x Patient Cable(Snap button type),
1x Power Cable,
1x Grounding Cable,
2x Fuse,
1x Paper Roll Shaft,
1x Paper Roll,
1x Screwer,
1x Operator's Manual,
1x Dust Cover
