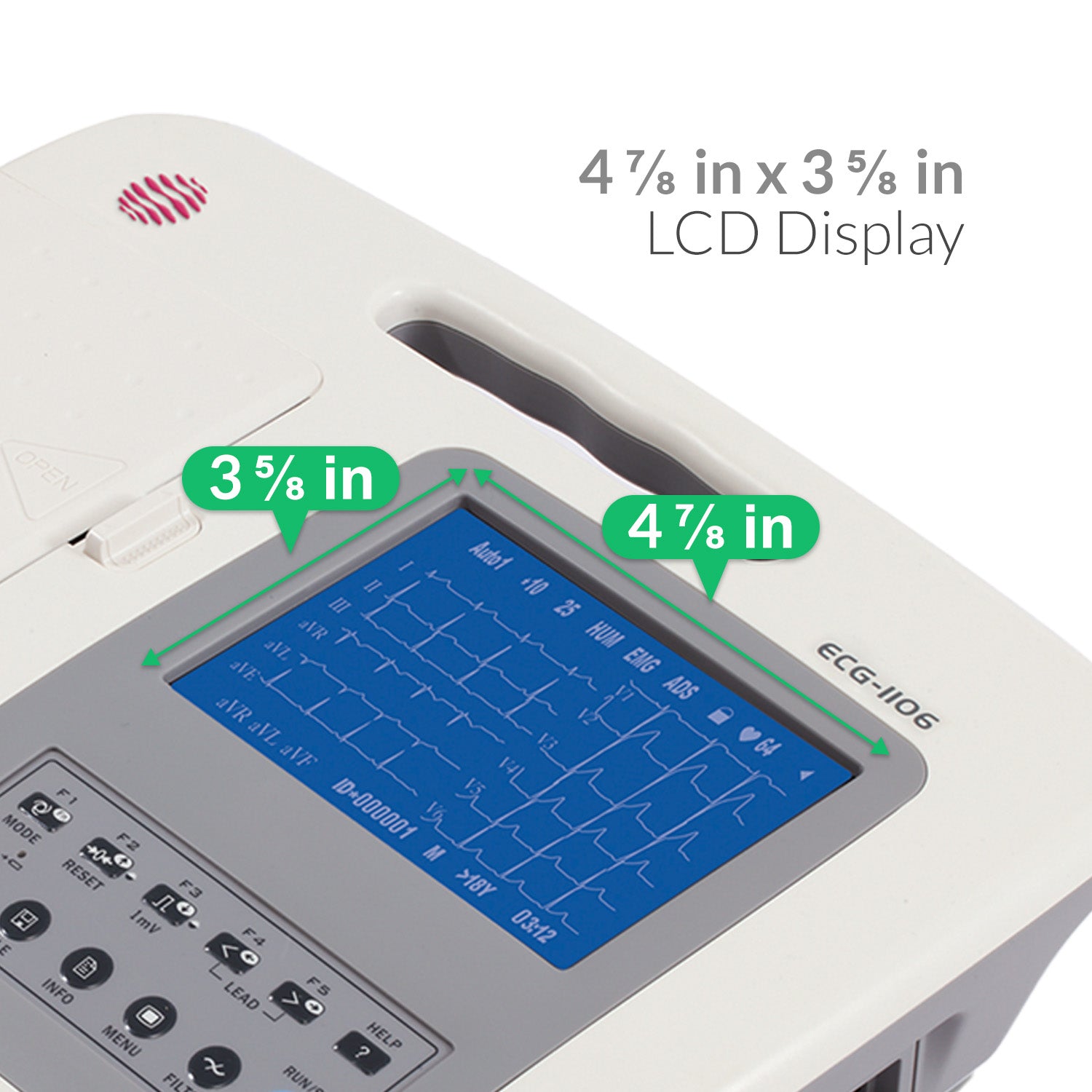

• 5.7 inch LCD display
• 12-lead simultaneously display
• Powerful digital filters: HUM, EMG, ADS, Low pass

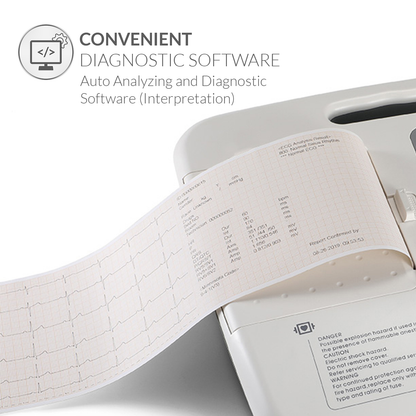

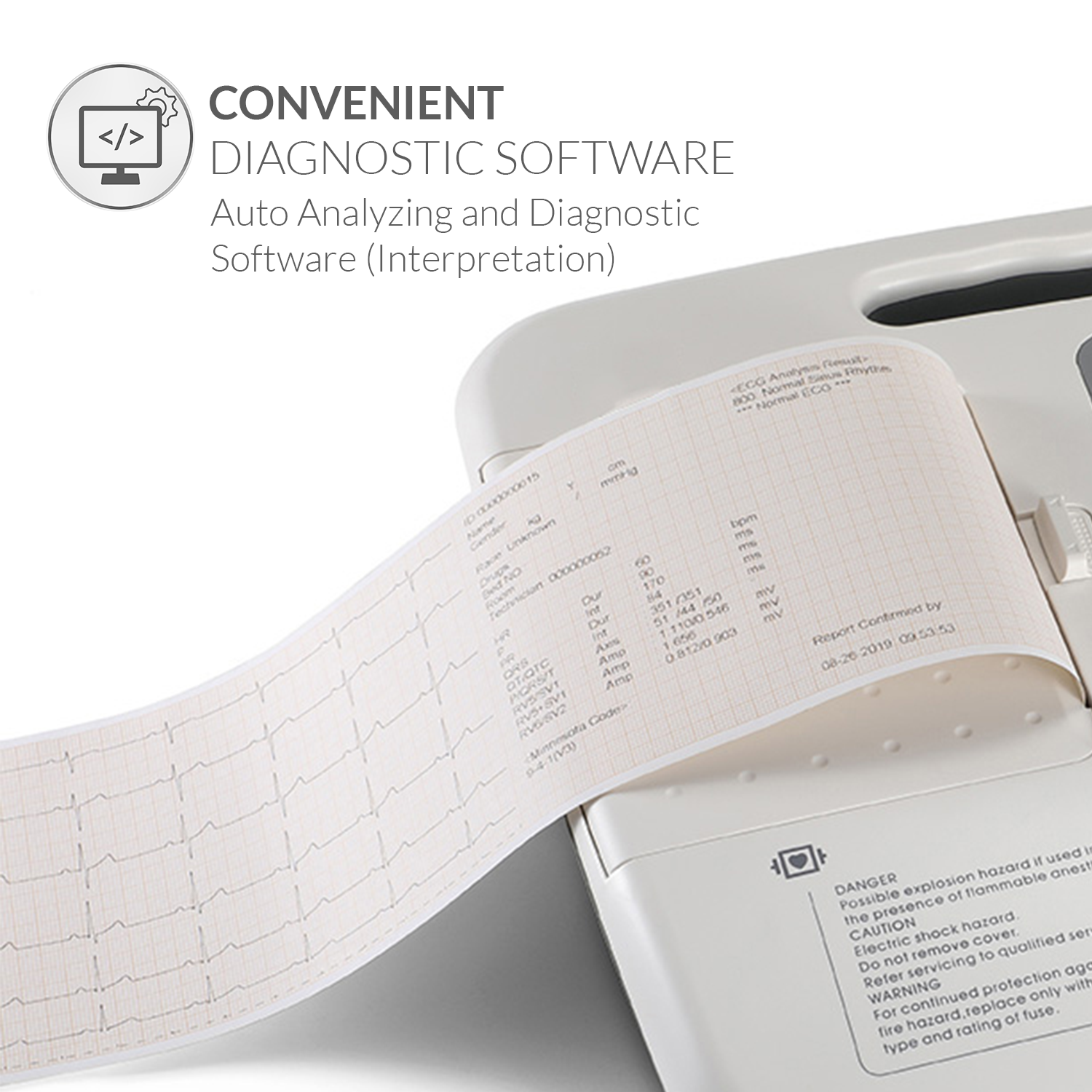

• Convenient Diagnostic Software - Auto Analyzing andDiagnostic Software (Interpretation)
• Efficient Data Management - Data managementsoftware on PC (Optional)
• 250 ECG files can be save to SD card
• 12 ECG files can be save in the ECG
• Reliable Measurements - Reliable automatic measurement& Interpretation tested with CSE & AHA database

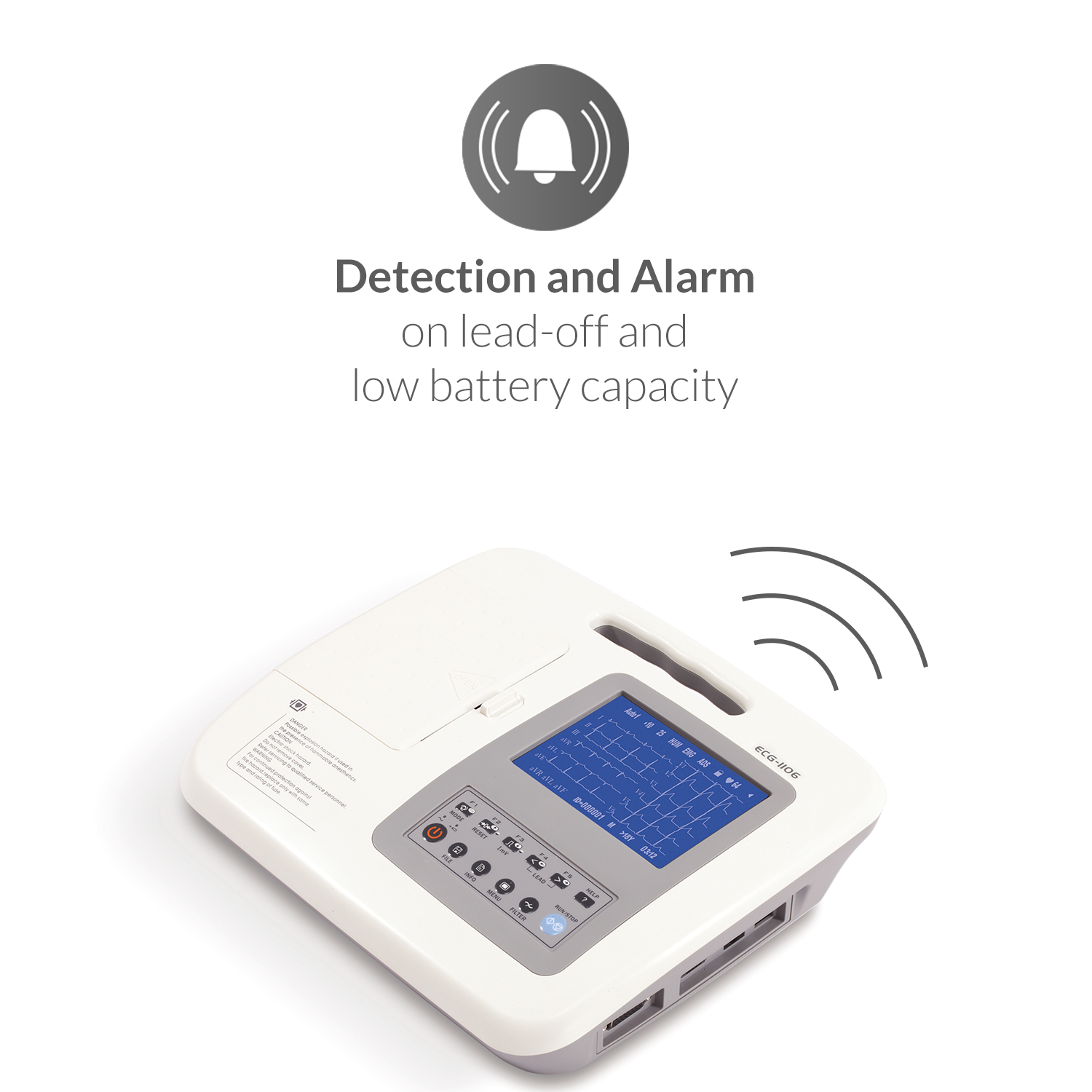

• Detection and alarm on lead-off and low battery capacity 6

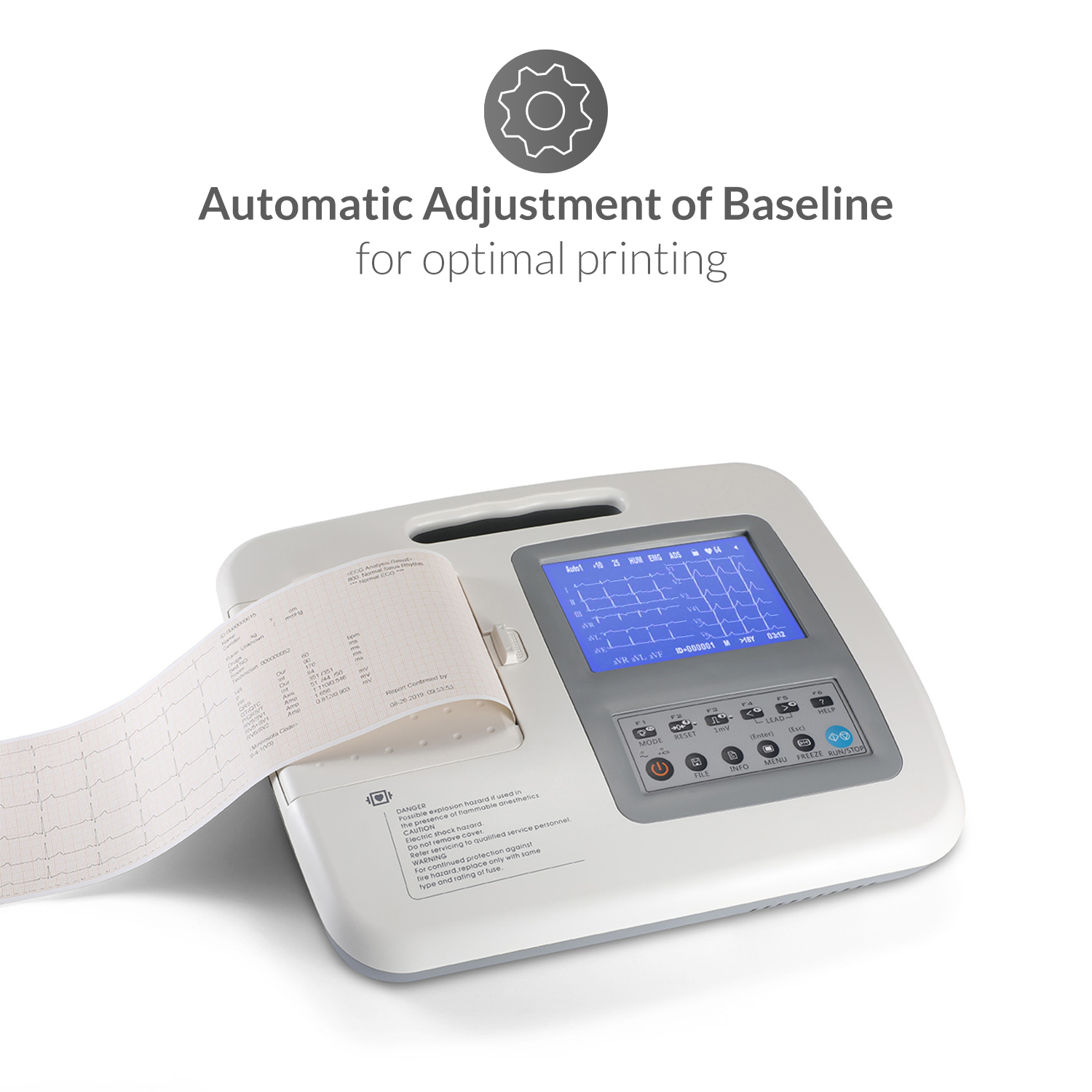

• Automatic adjustment of baseline for optimal printing 7
• Printing width: 112mm
• Interface: RS232, USB
• No Ink needed for printing
Safety Standard IEC Class I, type CF
Acquisition Mode 12 lead acquisition simultaneously
Input Circuit Floating, protection against defibrillator andpacemaker
A/D Converter 12 bit
Time Constant ≥3.2s
Frequency Response 0.05Hz ~ 150Hz(-3dB)
Sensitivity 2.5, 5, 10, 20, 40 (mm/mV),
Auto Input Impedance ≥50MΩ
Input Circuit Current ≤50nA
Calibration Voltage 1mV±2%
Noise Level 100dB(with AC filter )
Patient Current Leakage
Power Supply
-
AC Power Supply
Rated Voltage: 100-240V~
Rated Frequency: 50/60Hz
Rated Power: 60VA
-
Built-in Lithium Rechargeable Battery
Rated Voltage: 14.4V
Rated Capacity: 2200mAh
-
Fuse: T2AH250V 05x20
Function Features
• Light in weight, compact in size, user-friendly
• Powerful filter of ADS, HUM and EMG
• Three kinds of operation modes: AUTP, MAN, ANA
• Detection and alarm of lead-off, lack of paper or no battery
• Built-in ECG simulator
• Built-in rechargeable lithium battery with high capacity
• Thermal dot-matrix printer for high resolution printout
• Automatic adjustment baseline for optimal recording
• Standard RS232 communication interface
• Optional USB interface
• Optional wireless communication interface for sending 12 channel ecg to PC and setting up ECG database via Carewell ECG Workstation Software
• Display of ECG waveforms on LCD
• Built-in Help Function: electrode positioning, ECG basic knowledge, common trouble-shooting and so on.
• Clinical information such as patient ID, gender, age can be edited. Besides ID, gender and age, name, height, weight, blood pressure and hospital name can also be edited.
• Standard lead mode or Cabrera lead mode available
• Case storage Function: 15 cases can be saved in the machine or as much as 250 cases in an SD card. Saved ECG waveforms can be cine-looped, printed out or transferred to PC.
INCLUSIONS

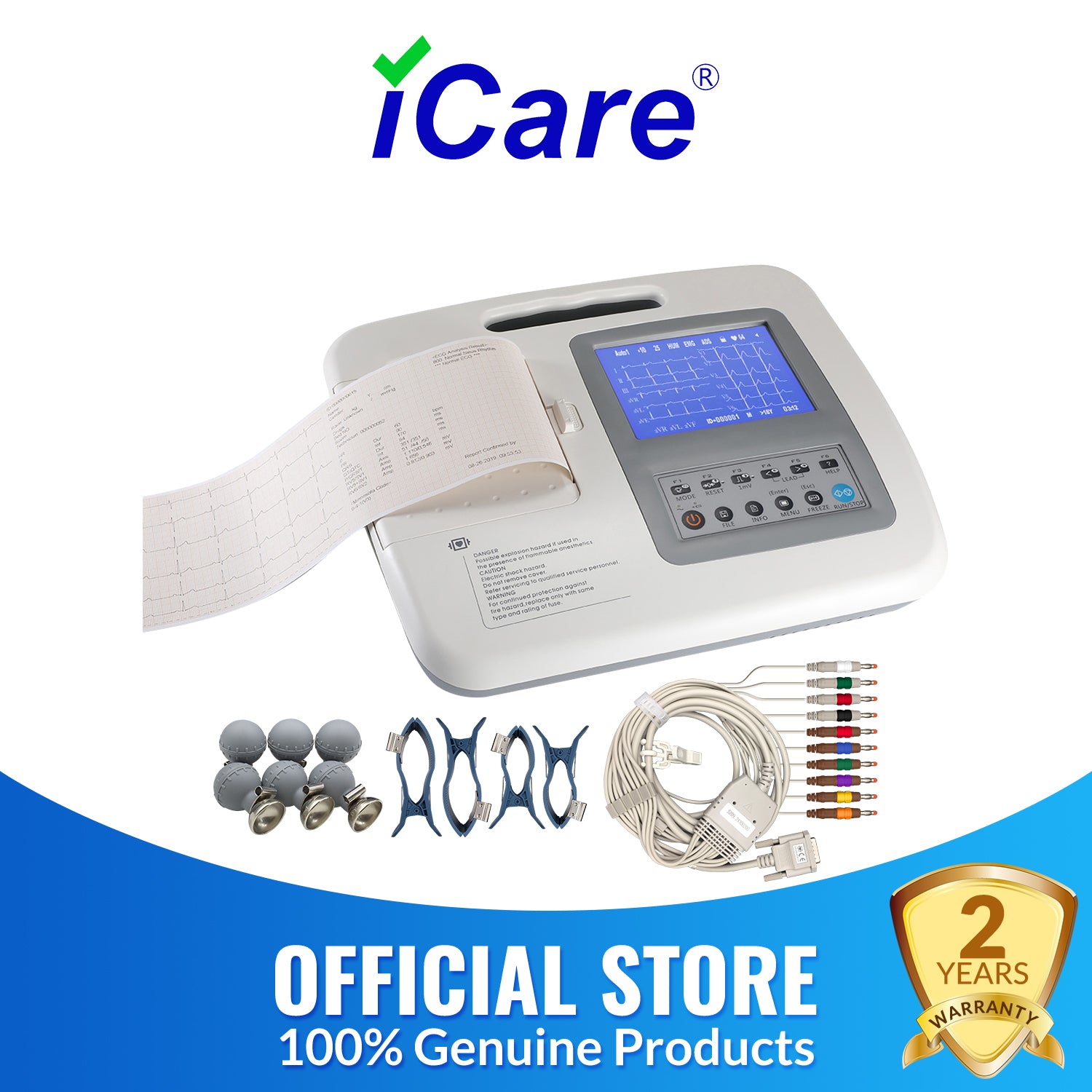

FOR BULB & CLAMP SET:
1x Main Unit,
1x Battery(already inside main unit),
1x Patient Cable(Bulb & Clamp Type),
6x Chest Electrode(Bulb)
4x Limb Electrode(Clamp)
1x Power Cable,
1x Grounding Cable,
2x Fuse,
1x Paper Roll Shaft,
1x Paper Roll,
1x Screwer,
1x Operator's Manual,
1x Dust Cover
FOR SNAP BUTTON SET:
1x Main Unit,
1x Battery(already inside main unit),
1x Patient Cable(Snap button type),
1x Power Cable,
1x Grounding Cable,
2x Fuse,
1x Paper Roll Shaft,
1x Paper Roll,
1x Screwer,
1x Operator's Manual,
1x Dust Cover
