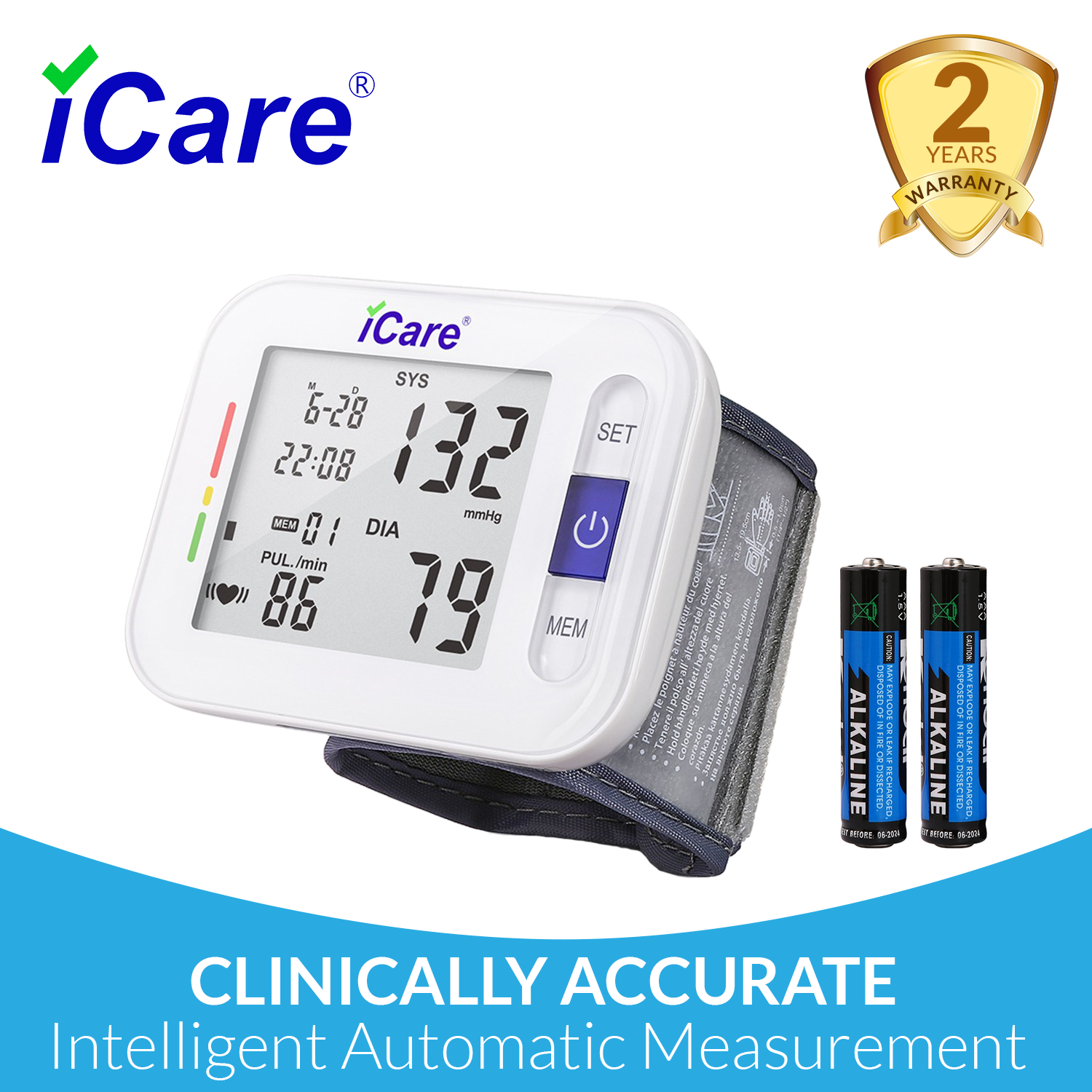

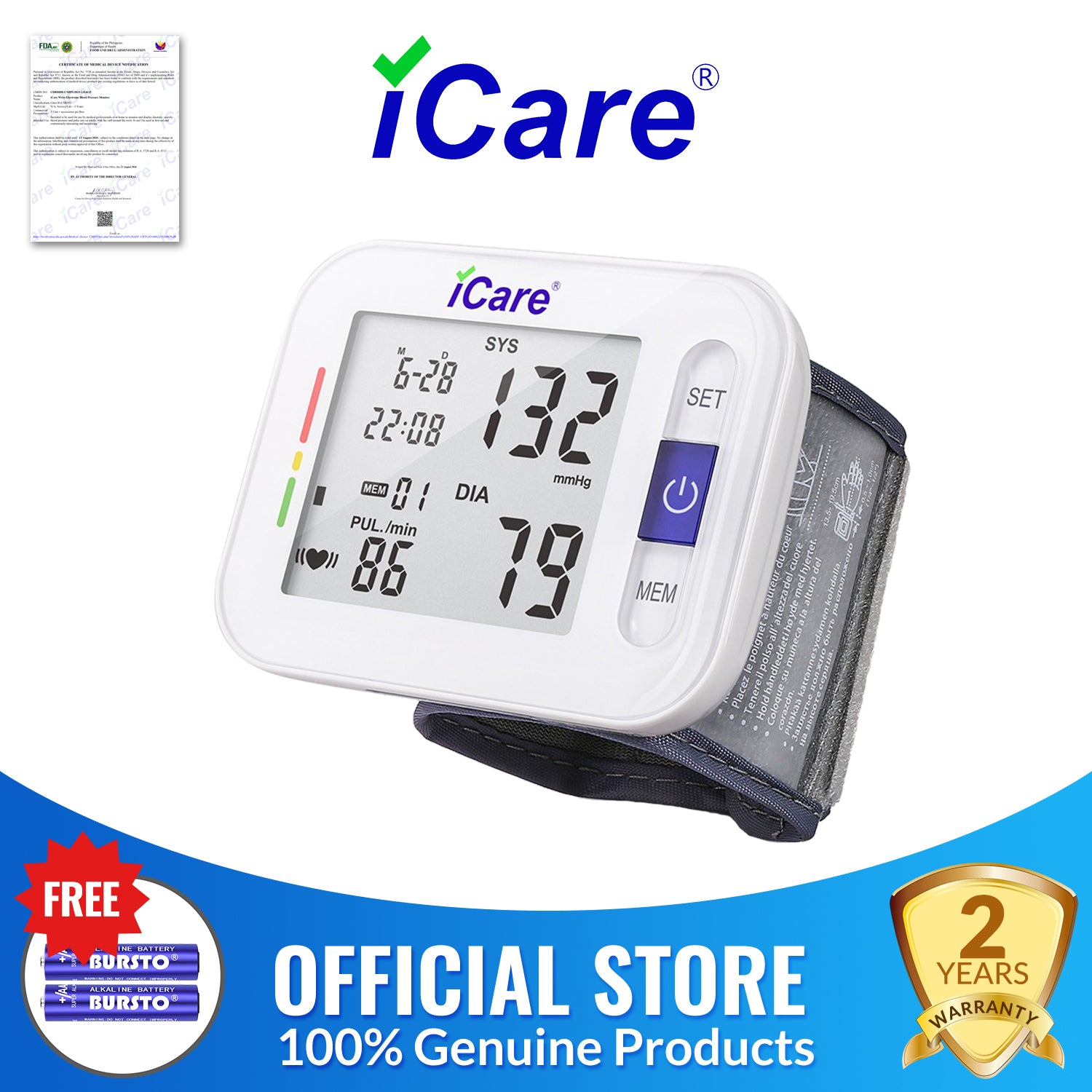

iCare® CK109 Automatic Digital Blood Pressure Monitor / Digital Sphygmomanometer Wrist Type

• Product Description:

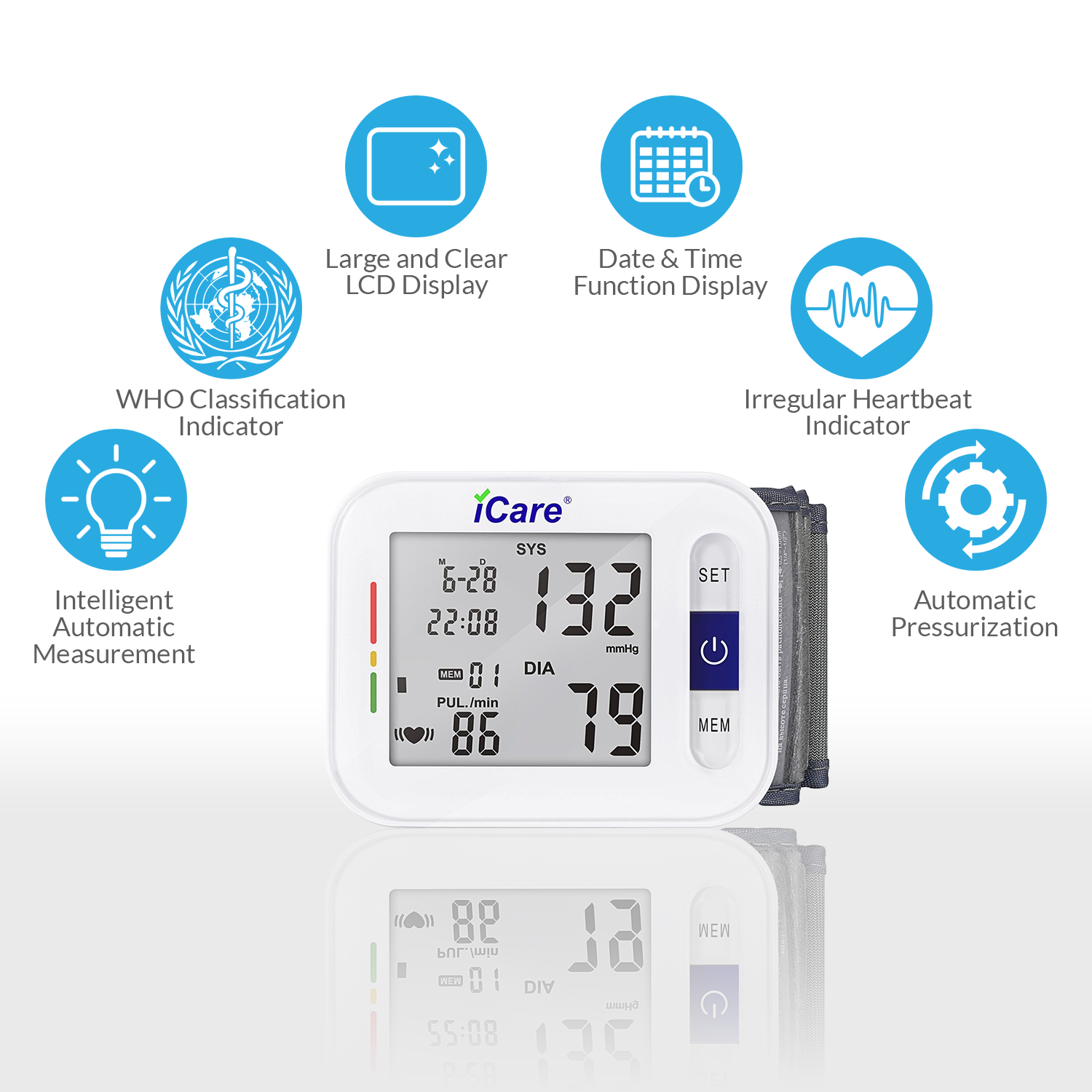

  • WHO Classification Indicator
  • Acrylic Screen
  • Date/Time Display
  • Irregular Heartbeat Indicator

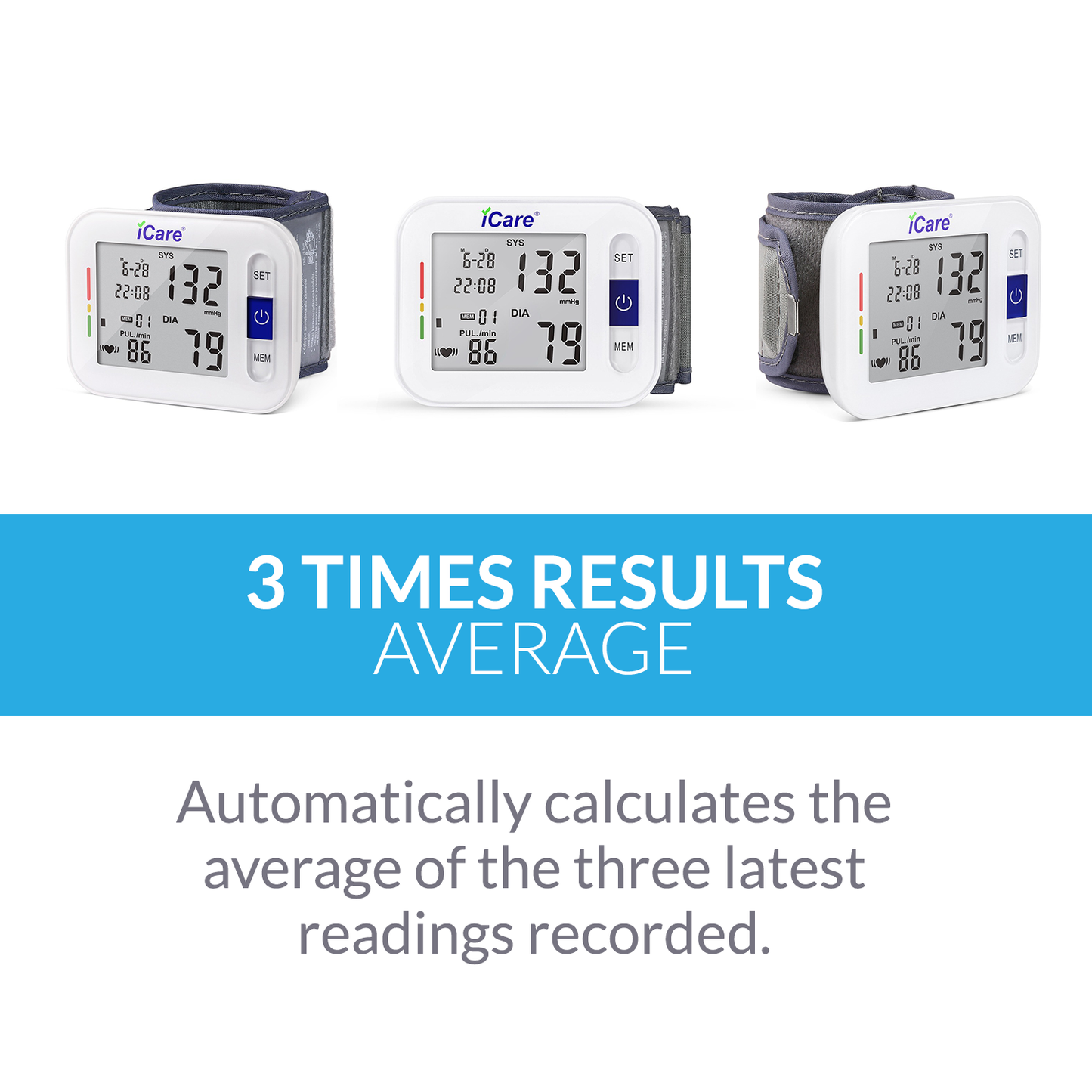

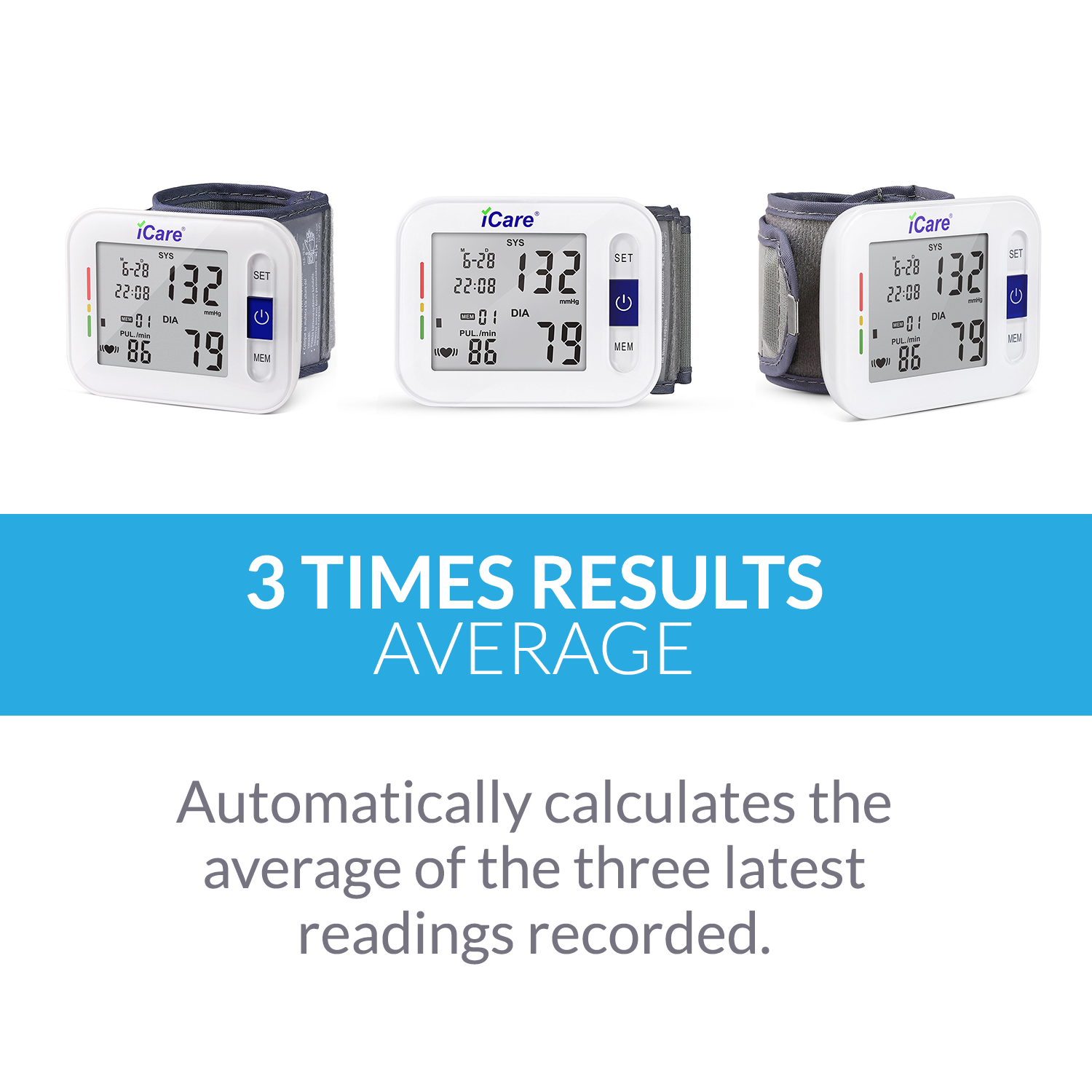

  • 3 Times Average Result
  • Measuring principle: Oscillometric method
  • Measuring location: Wrist
  • Cuff Size: 13.5-19.5 cm
  • 90 Set Memories
  • Power Source: 2pcs (2 x 1.5v) AAA alkaline batteries
  • Measuring pressure accuracy: ±3 mmHg
  • Measuring range: Pressure ±3mmHg / Pulse ±5% of reading
  • Measuring Pulse range: (40 to 199) Beat/min
  • Measuring range: Pressure 30-280mmHg / Pulse 40-199 pulses/min
  • Automatic power off: Approx. 3 minutes
  • Operating Environment: 5°C to 40°C / 15%-93% RH
  • Storage Environment: -20°C to +55°C 0%-93%RH

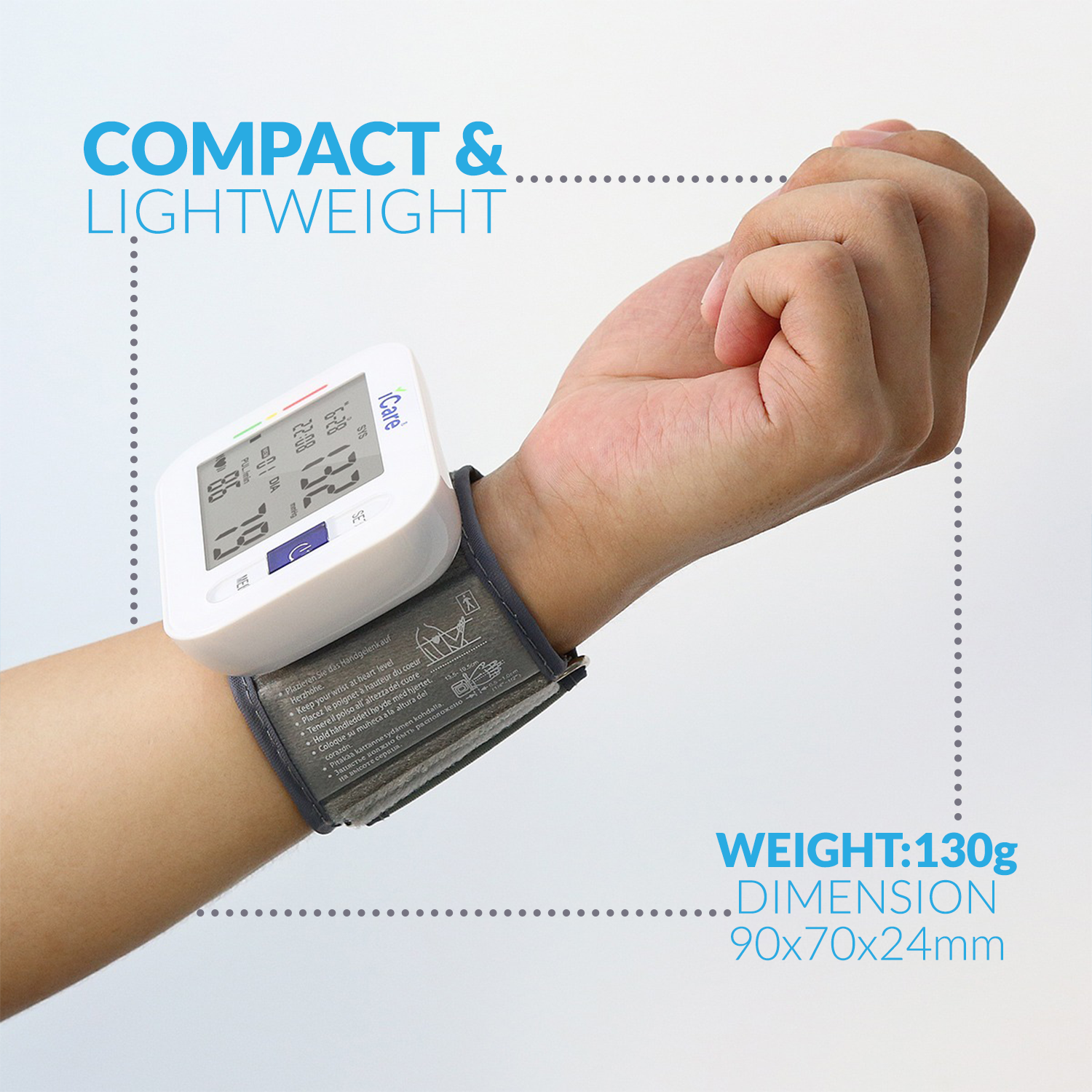

  • Dimension: Approx.90(W) x 70(H) x 24(D)mm
  • Weight Approx.130g. Excluding Batteries



  Proper Usage of Wrist type BP Monitor:

  • Add a power supply. You can either use 2pcs 1.5V AAA Alkaline batteries.
  • Wear the wrist cuff properly. Place the cuff on your LEFT wrist, palms up, with the screen facing upward.
  • Sit properly and place your left arm on the same level as your heart or chest.
  • Press the Start/Stop button. The BP monitor will now start pumping air into your wrist cuff. Remain calm and sit still while taking your blood pressure. Avoid any movement or talking to prevent miscalculations or errors while measuring.
  • You can view your results after a minute.
  • For more accurate results, it is suggested to measure BP two more times with at least 3 minute interval between each measurement, and then view the average 3x result by pressing on the [MEM] button while the device is off. You will notice an [AVG] icon, it means that the device is currently displaying the average of your latest 3 measurement results.




  NOTES:


  USE ALKALINE BATTERIES
